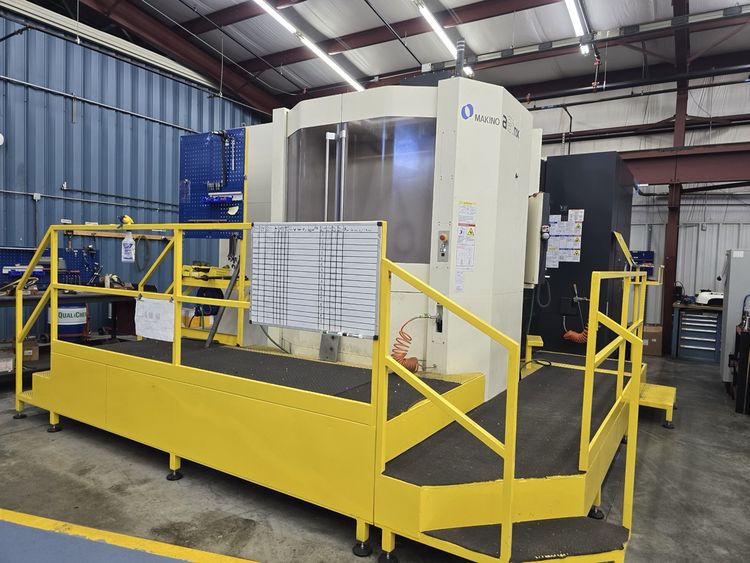

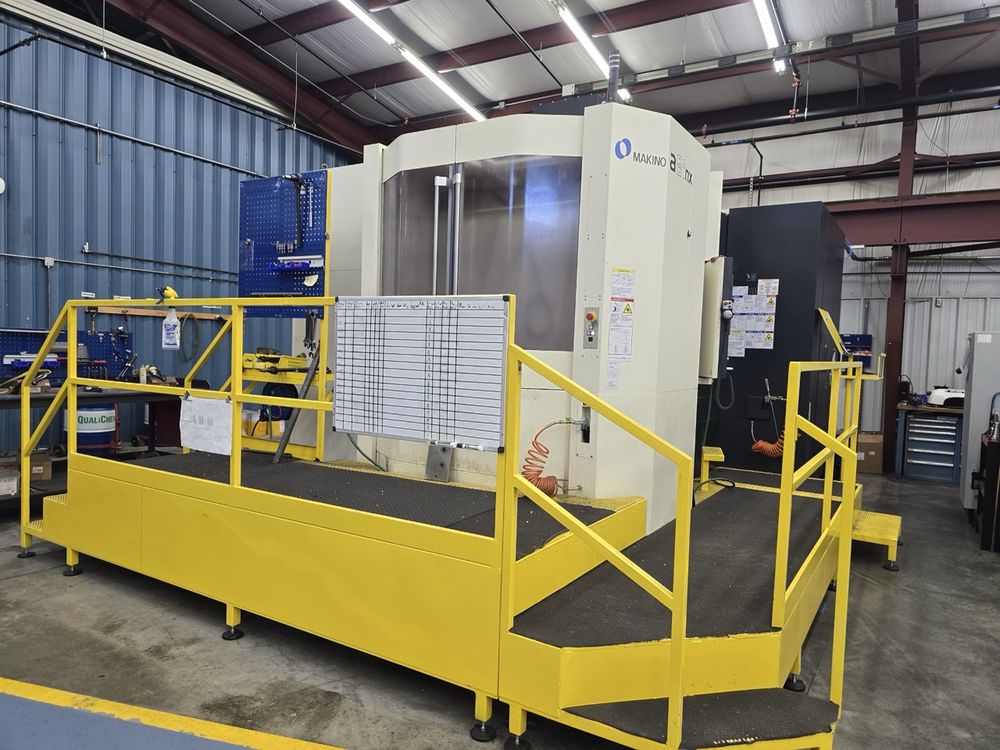

Makino A81NX 4 Axis

X Axis Travel 35.4"
Y Axis Travel 35.4"
Z Axis Travel 40.2"
B Axis 360° Full 4th Axis Bi-directional

Pallet Size 24.8" x 24.8"
Pallet Count 2

Spindle Speed 50–10,000 RPM
Spindle Taper CAT 50
Spindle Power 60 HP (35 HP continuous)

Rapid Traverse 1,968 in/min
Cutting Feedrate 1,968 in/min

ATC Capacity 60 Tools
Tool Change Time 1.7 sec
Chip to Chip Time 3.7 sec
Max Tool Length 27.2"
Max Tool Diameter 14.0"
Max Tool Weight 66 lb

Max Workpiece 39.4" x 51.2"
Max Table Load 2,645 lb

Control Pro6 CNC Control
Through Spindle Coolant ChipBlaster HV40 1,000 psi
Rigid Tapping Included
Workpiece Wash Gun Included
4th Axis Full Bi-directional Included
Chip Conveyor Not Specified
Machine Type Horizontal Machining Center
