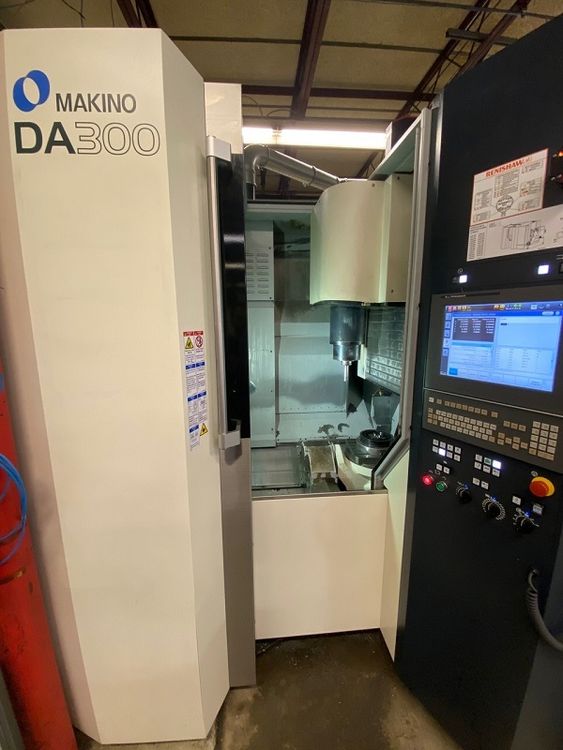

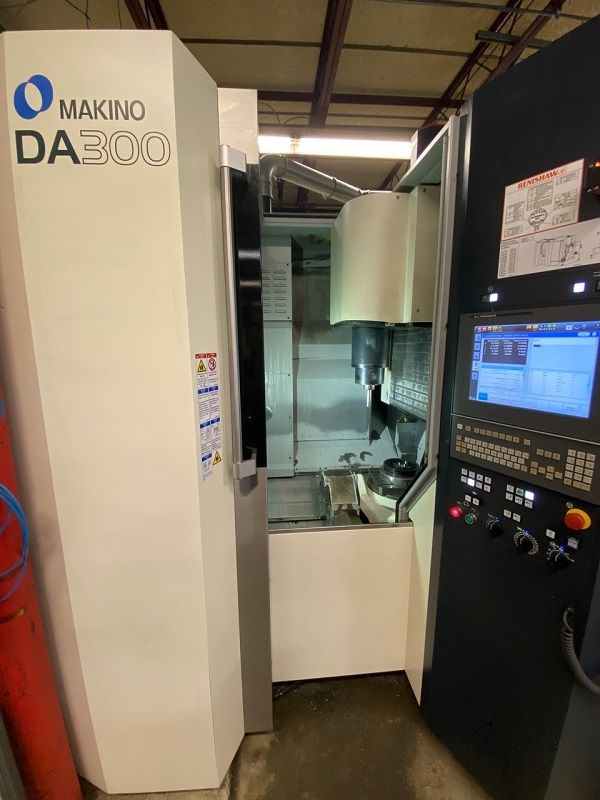

Makino DA300 5 Axis

X Axis Travel: 17.7 in
Y Axis Travel: 25.6 in
Z Axis Travel: 19.68 in
A Axis Tilt: +30° to -120°
C Axis Index: 360°
Rapid Traverse Rate: 2362 ipm
Control: Professional 6 CNC Control
12.1 in Color TFT
USB Port
Integral 5-Axis Tilt/Rotary Trunnion Table
Pallet Size: 13.38 in x 11.81 in
Max Table Load: 551 lb
Max Workpiece Diameter: 17.7 in
Max Workpiece Height: 15.7 in
Spindle Speed: 20000 rpm
Spindle Taper: HSK-A63
Spindle Motor Power: 30 hp
Through Spindle Coolant: 217 psi
Tool Magazine Capacity: 60
Max Tool Diameter: 2.75 in / 5.51 in
Max Tool Weight: 17.6 lb
Mayfran Consep 2000 Microfine Dual Stack Chip Conveyor (Rear Exit)
Super GI .5 Control
Renishaw RMP600 High Accuracy Strain Gauge Probe
PQI/Renishaw AxiSet Check-Up System
Scale Feedback X, Y, Z Axis: 0.05 micron
Vision Broken Tool Sensor Mounted in ATC Magazine
Collision Safeguard Software
Manual Clamp/Unclamp Function for Table Chuck
Base Coolant
Air Blower: 4 Nozzles on Spindle Nose
Nozzle Coolant: 4 Nozzles on Spindle Nose
Shower Coolant
Mist Collector Joint Diameter: 125 mm
Air Dryer
Automatic Fire Extinguisher Interface
Remote Jog Handle
Signal Light: 3 Layer
Linear Interpolation Type Positioning
Helical Interpolation
Rigid Tapping
Retraction for Rigid Tapping
Inverse Time Function
User Memory: 2 GB + 1 GB
External Setting Type Spindle Orientation
Tool Offset Memory C
400 Sets of Tool Offsets
54 Sets of Work Coordinate System Pairs
Optional Block Skip: Total 9
Program Quick Restart Function
Custom Macro Variables: 1100
Scaling
Macro Variable File Output Function
High Speed Skip
High Speed Smooth Tool Center Point Control
3-Dimensional Cutter Compensation
Tilted Working Plane Indexing Command
Rotary Table Dynamic Fixture Offset
Energy Saving Function
Eight Digit Tool Codes
Run Hour Meter
Fast Ethernet Interface
Additional Program Storage to 16800 ft (5120 m)
Third and Fourth Reference Position Return
Installed: November 2018
Energized Time: 37648 h
Operation Time: 16989 h
Cutting Time: 11292 h
Spindle Time: 15602 h
