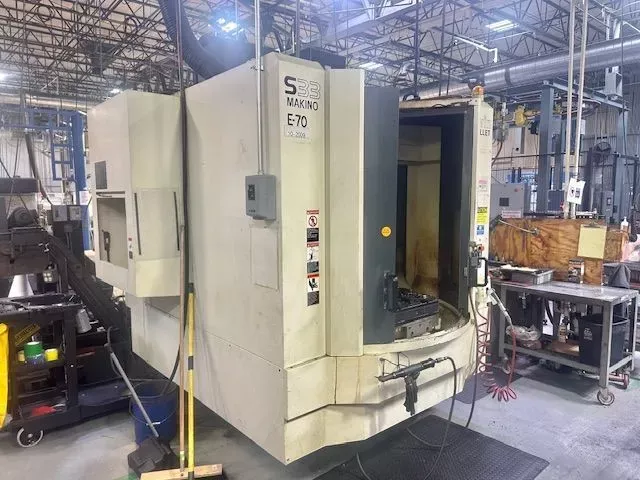

Makino S33 3 Axis

X-axis travel: 25.6"
Y-axis travel: 19.7"
Z-axis travel: 17.7"
Spindle nose to table top: 4.7" – 22.4"
Rapid traverse X: 1,575 in/min
Rapid traverse Y: 1,575 in/min
Rapid traverse Z: 1,575 in/min
Cutting feed rate: 1,575 in/min
Control: FANUC 310i CNC color control with PRO 5
Spindle speed: 12,000 RPM
Spindle taper: 40
Main motor power: 30 hp
Automatic tool changer capacity: 30 tools
Tool diameter: 4.5"
Tool diameter (adjacent): 5.12"
Maximum tool length: 11.8"
Maximum tool weight: 17.6 lb
Table length: 23.6"
Table width: 15.7"
Number of pallets: 2
Maximum table load: 880 lb
Machine weight: 16,464 lb

Features / options / equipment
FANUC PRO 5 CNC control
Renishaw RMP 400 part probe
Renishaw RTS optical tool length measurement
Extended memory
Through-spindle coolant
Air through spindle
Helical interpolation
Nozzle coolant
Air dryer
Shower coolant
Air blow
Work wash system
Rigid tapping
Manual pulse generator
Spindle chiller
Twin pallet changer with 180-degree swing
Chip conveyor system
Complete manuals
