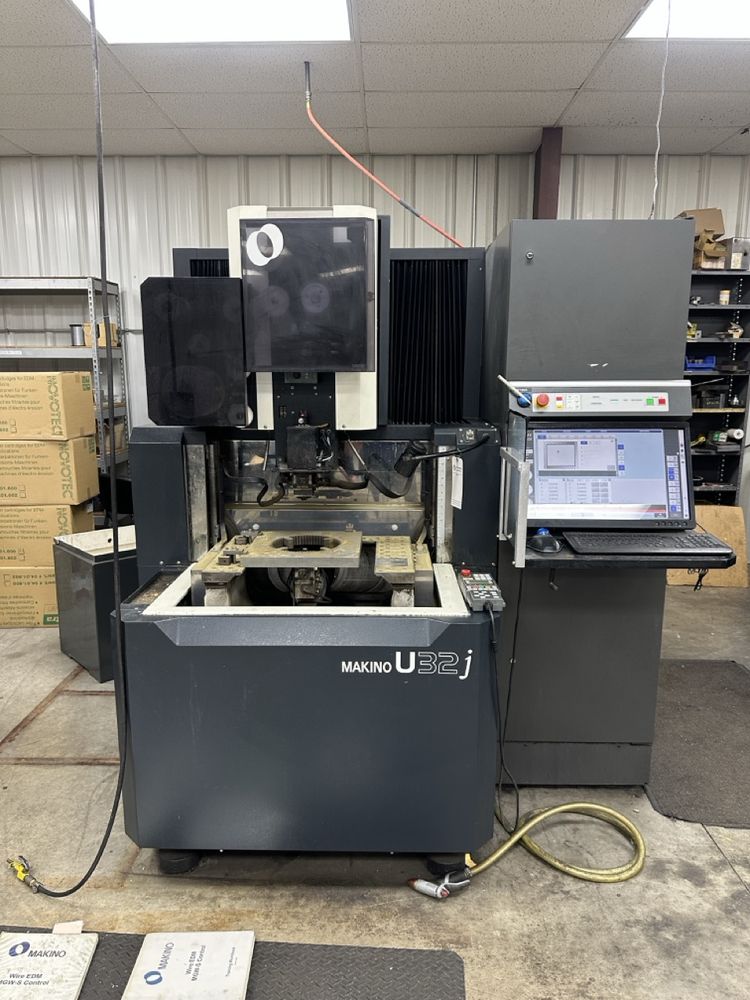

Makino U32J

X axis travel: 370 mm
Y axis travel: 270 mm
Z axis travel: 220 mm
U axis travel: +/- 50 mm
V axis travel: +/- 50 mm

Makino Hyper I CNC
24" HD touch screen
Programmable 3-sided rise and fall work tank
Paper filter system

Maximum workpiece size: 780 x 590 x 220 mm
Maximum workpiece weight: 1,322 lbs
Work table dimensions: 570 x 370 mm

Wire diameter support: 0.1 mm – 0.3 mm
Optional wire diameter support: 0.05 mm – 0.07 mm
Taper angle: +/- 15° at 100 mm thickness
Surface finish capability: 0.07 µmRa
Positioning accuracy: 0.05 mm glass scale feedback system

Dielectric capacity: 156 gallons
Footprint: 80.7" x 99.2"
Weight: 7,055 lbs.
Power supply: 200V +/-10% / 3-Phase / 50/60 Hz
Total capacity: 12 kVA
Air supply: 0.5 MPa minimum
Air flow rate: 21 SCFM
