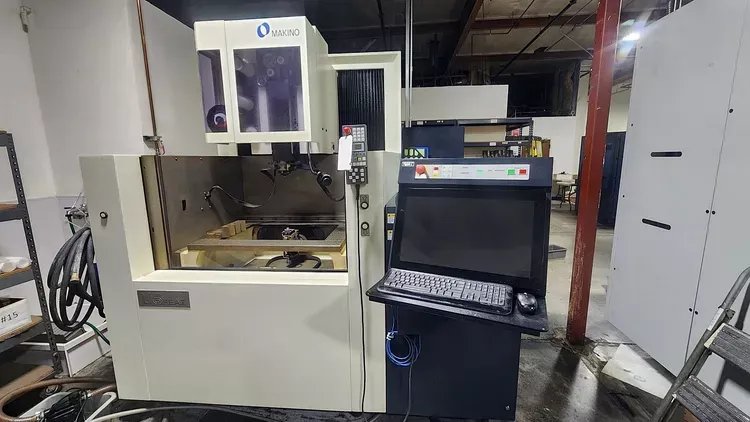

Makino U6 H.E.A.T

MAKINO U6 H.E.A.T
2018

Type: Wire EDM
X-Axis Travel: 25.6"
Y-Axis Travel: 17.7"
Z-Axis Travel: 16.5"
Auto Threading: Yes
Submerged Cutting: Yes
Hyper i CNC Control
±3.0" U Axis Travel
±3.0" V Axis Travel
Table Size: 35.8" x 27.9"
Inside Tank Dimensions: 42.12" x 34.64"
Max Workpiece Dimensions: 39.37"L x 31.49"W x 15.74"H
Maximum Dielectric Fluid Height: 17.91"
Max Workpiece Weight: 3,306 lbs
15° Taper Cutter
0.000002" X & Y Glass Scale Feedback
Wire Electrode Diameter Options: 0.1mm, 0.15mm, 0.2mm, 0.25mm, 0.3mm
Standard 4-Sided Hardened Worktable
Split-V Wire Guide System
Higher Capacity Flush Pumps (2 pumps)
Higher Capacity Orion Chiller Unit
H.E.A.T. Technology for High-Speed Machining
Rotary Encoders
Submersible Flushing
Automatic Temperature Control Chiller
Complete Dielectric Filtration System
