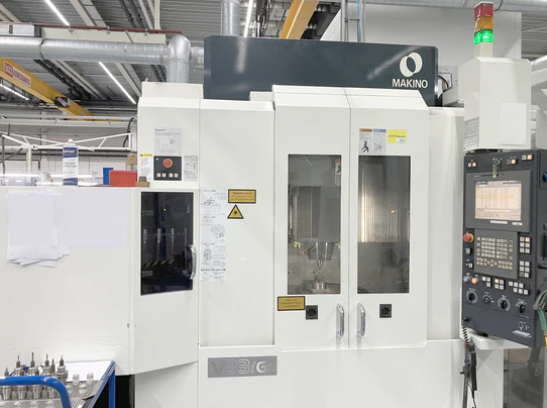

Makino V 33i Graphite 3 Axis

Longitudinal travel X 650 mm
Transversal travel Y 450 mm
Vertical travel Z 350 mm
Feed range 1–20000 mm/min
Rapid traverse 20 m/min
Control MAKINO PROFESIONAL 5
Internal spindle nose HSK E50
Distance spindle nose to table 150–500 mm
Spindle speed 300–30000 rpm
Torque max 23.1 Nm
Spindle power 17/13 kW
Tool magazine capacity 60
Tool diameter max 80 mm
Tool length 250 mm
Max tool weight 7 kg
Tool change time 4.8 s
Voltage 400 V
Total power required 50 kVA
Machine weight about 7700 kg
Machine length 2330 mm
Machine width 2325 mm
Machine height 2600 mm
Table length 750 mm
Table width 450 mm
Number of T-slots 4
T-slot spacing 100 mm
T-slot width 18H8 mm
Table load max 300 kg
Workpiece length 750 mm
Workpiece width 635 mm
Workpiece height 250 mm
Air connection 4–8 bar

Machine equipped with
Lamp
Oil mist extractor
Spindle cooling
Workpiece loader EROWA EASY ROBOT
Status light
