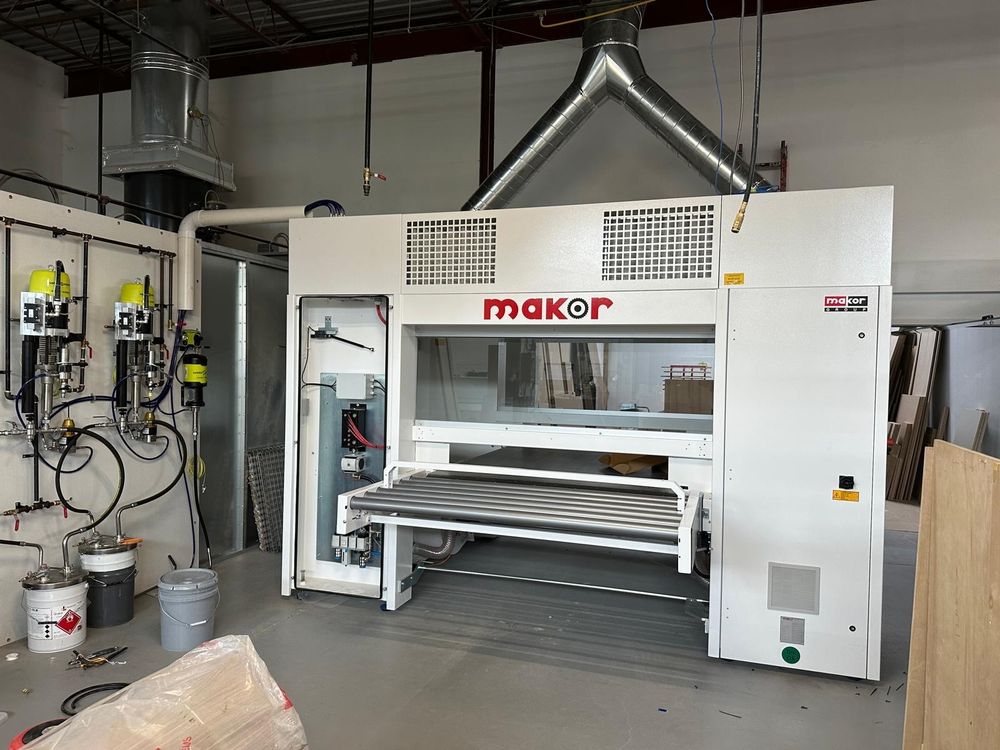

Makor K2

Automatic Sprayer
Technical Specifications :
Workpiece Dimensions:
Length: Min: 300 mm / Max: 3,200 mm
Width: Min: 100 mm / Max: 1,300 mm
Thickness: Min: 6 mm / Max: 60 mm

Line & Production Data :
Configuration: KTWO model “C” – Twin Arm Reciprocating Sprayer
Fluid Circuits: 3 independent high‑pressure circuits
Feed Speed:
Min: 1.2 m/min
Max: 5.0 m/min
Typical recommended operating range for surface & edge coating: 2.0–4.0 m/min

Spraying & Control System :
Twin oscillating spray arms, fully electronic and PLC‑controlled
Touch‑screen HMI operator interface:
Full control of spray arm motion
Recipe‑based program storage
Individual spray gun overspray and setup controls
2D part reading system:
Electronic barrier scans part dimensions
Guns open and close in real time
Improves transfer efficiency and reduces overspray

Spray Cabin & Air Management :
Fully pressurized spray cabin
Dual‑stage air filtration for intake and exhaust
Variable‑frequency controlled intake and exhaust fans
Designed to maintain balanced airflow and consistent finish quality
Multiple dry filter stages for effective paint particle capture

Paper Transport & Self‑Cleaning System :
Integrated paper transport belt system:
Covers entire spray area
Eliminates internal overspray buildup
Paper indexes only when parts are detected, reducing consumable cost
Quick roller replacement and minimal cleaning requirements

Utilities & Electrical :
Electrical: 480 V / 60 Hz / 3‑phase
Transformer included
CSA electrical certification included
Total installed power: approx. 10 kW
Air capacity: up to 10,000 m³/h
Working height: 900 mm ± 30 mm

Included Spray Equipment – Kremlin
This Makor K2 is sold with a complete Kremlin spray system, already configured for Makor integration.

Included :
Kremlin automatic spray guns
Kremlin pumps with regulators and filtration
Agitated material containers
Circulation valves and fluid management components
Hose packages, fittings, and Makor‑specific mounting hardware
