Makro MAK-1 4P Ua2 Lw

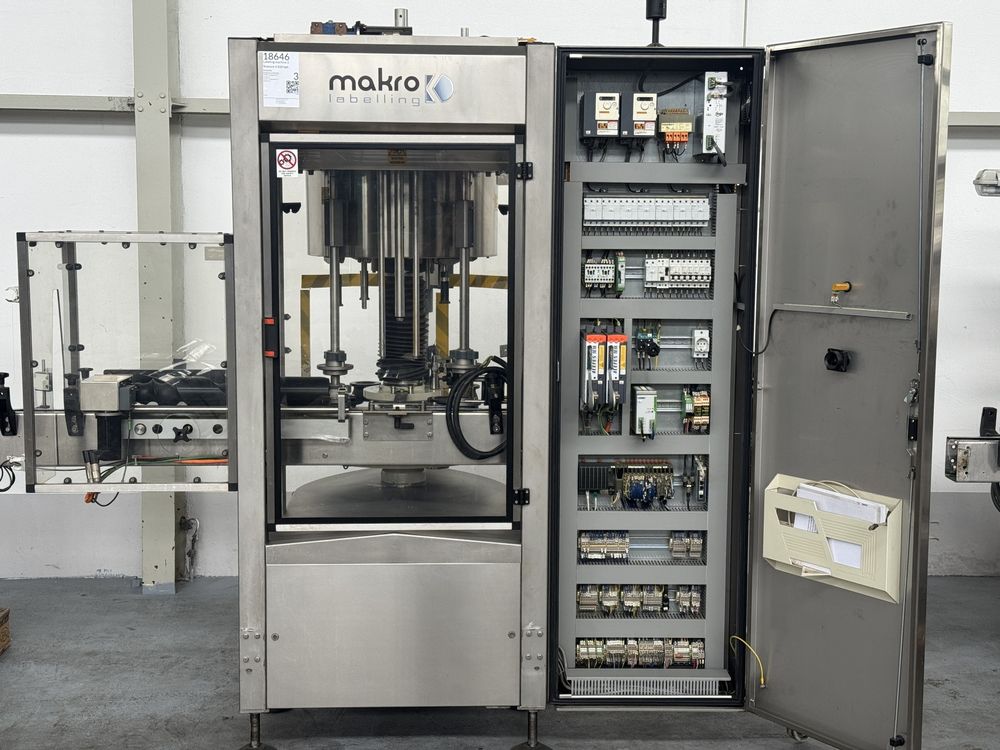

Automatic labeling machine for glass bottles
Manufacturer/Model: Makro MAK-1 4P Ua2 L2 Version with 2 self-adhesive labeling units MAK-A50
Suitable for front label and back label Output: up to approx. 3,000–3,500 bottles/hour
Container diameter: 40–130 mm, container height: 140–380 mm
Label length: 10–195 mm, label height: 10–180 mm Stainless steel version AISI 304,
safety enclosure in accordance with CE PLC control with touch-screen display
Automatic speed regulation and electric head height adjustment
Optical orientation via sensors, plate rotation via stepper motors Installed power: approx. 4 kW

Technical Details
working direction left-right
clockwise
capacity bph max. 4500
labels self adhesive labels
number of labelling stations 2
number of bottle plates 4
orientation
bottle plate with stepper motor
optical orientation using a photocell
bottle diamater max (mm) 130
bottle diamater min (mm) 40
bottle height max (mm) 380
bottle height min (mm) 140
motor height adjustment yes
speed adjusment
frequence converter
