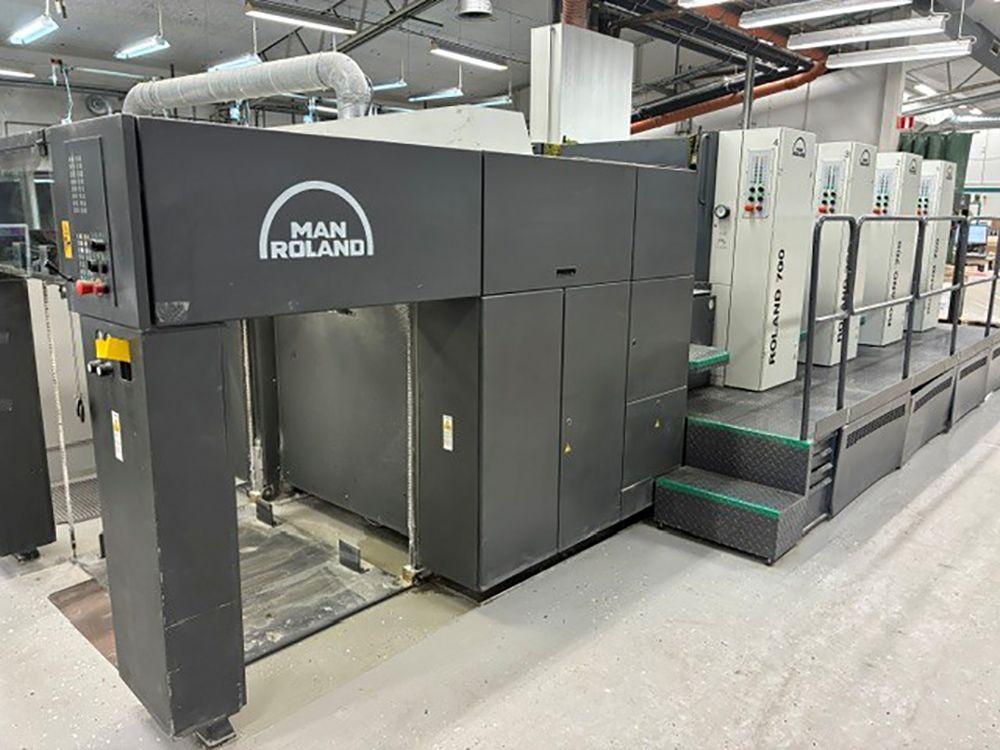

MAN Roland 704 3B

Color 4
Impression : 138
Max. Size : 740 × 1040 mm
Min. Size : 340 × 480 mm
Condition : Good

Included Equipment:
CCI ink and print quality control system with digital measuring strip
APL fully automatic plate clamping system
Ink temperature control unit
Technotrans dampening solution circulation system with pH and conductivity control
Grafix Hitronic powder spray system
Motorized plate cylinders
Anti-setoff device at delivery
QuickStart software with LCS (Low Coverage Stabilization)
Complete tool kit
6 sets of ink rollers
Measuring clock for underpacking control
One additional roller set (10 rollers)
PECOM ServerNet (Windows NT based)
Job Pilot prepress/job preparation software
Complete PECOM software package including installation

Feeder:
Roland Non-Stop feeder for continuous pile change
Remote adjustment from operator console
Automatic pile height control
Automatic suction head adjustment
Speed-compensated suction head air control
Adjustable separating suckers during production
Adjustable transport suckers
Double-sheet detector
Ceramic-coated transport roller
Electrostatic-free transport table
Safety system against foreign objects
Steel suction belt table
Motorized feeder adjustment during production
Loading possible from both sides

Register System:
Front lays and side lays
Pneumatic side lay system
Remote side lay adjustment
Continuous register monitoring
Contact-free sheet detection
Bottom pull lays
Positive gripper control
Replaceable gripper tips

Printing Units:
Double-size impression cylinders
Double-diameter transfer cylinders
Low sheet stress transfer
Excellent accessibility
Printing pressure adjustment from console
Automatic plate clamping (APL)
360° cylinder adjustment
Digital register adjustment:
Lateral
Circumferential
Diagonal

Cylinder Features:
Programmable blanket washing system
Quick blanket changing system
Corrosion-protected cylinders
Air-assisted sheet transfer

Inking System:
Oscillating ink rollers
Automatic roller positioning
Automatic ink disengagement
Infinitely adjustable ink keys
Remote ink presetting
Remote ink duct roller adjustment
Remote ink roller washing

Dampening System:
RolandMatic Delta dampening system
Operates with or without contact to the inking unit
Automatic dampening roller engagement
Alcohol control
Conductivity monitoring
Temperature-controlled circulation
Automatic water supply
Automatic dampening unit washing

Delivery:
Air Glide High-Pile Delivery
Non-stop delivery
Continuous pile change
Double-diameter delivery drum
Air-assisted sheet guidance
Integrated sheet decurler
Speed-compensated brake roller
Powder spray system (Grafix Hitronic)
Pneumatic sample sheet extraction
Centralized operator controls

Lubrication:
Fully automatic central lubrication
Lubrication groups
Central oil change system

Air Supply:
Central compressed air supply
Oil-free compressed air
Vacuum system
Air dryer included

PECOM Process Electronics:
Central color monitor
Foil keyboard
Remote color control
Job card reader
Production data management
Hard disk job storage
Repeat job memory
Operator-friendly interface
Prepress job preparation software

Remote Control Functions:
Feeder adjustment
Suction head adjustment
Side lay adjustment
Pneumatic side lays

Drive System:
Digital AC main drive
Energy recovery system
Automatic parameter control
Motor temperature monitoring
Current monitoring
12-month manufacturer's warranty
