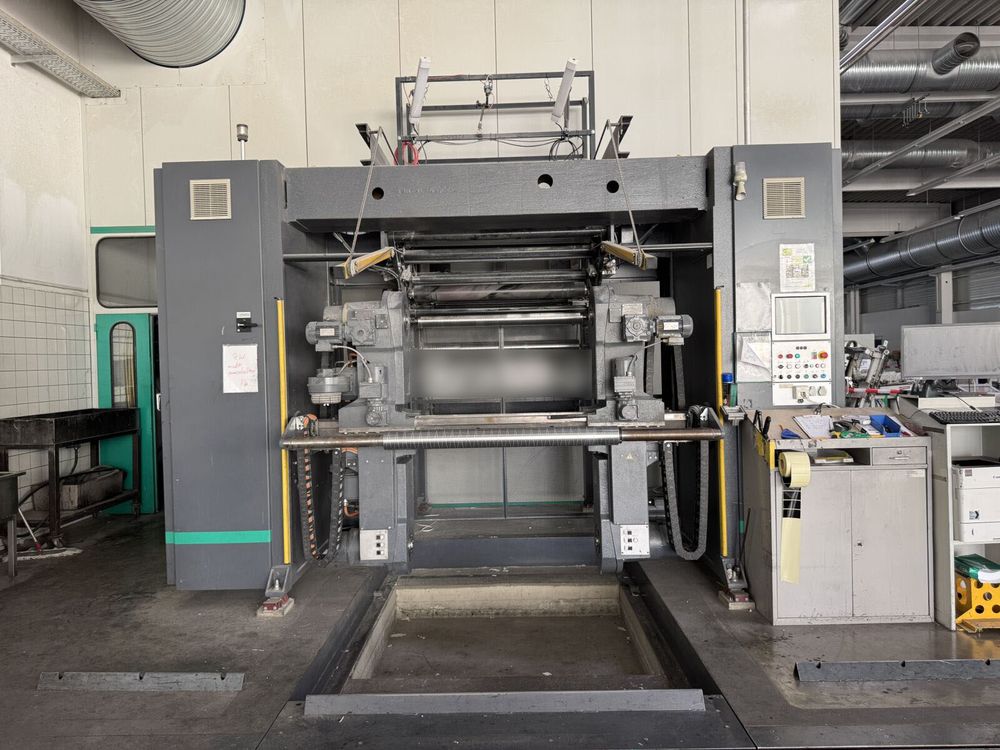

MAN Roland Lithoman 539 1

Key Data:
Machine Type: 1 color machine
Paper Flow direction: Left-to-right
Paper Fiber direction: Long Grain
Cylinder Circumference: 890 mm / 35"
Cutoff: 445 mm / 17.52"
Paper Width max.: 1260 mm / 50"
Speed: 40,000 cylinder rotations / h

Possible end products:
Product Height (fixed): 223 mm / 8.78"
Product Width after Funnel Fold max.: 165 mm / 6,5"
Product Width after Funnel Fold min.: 100 mm / 3.94"

Possible signatures with respective width:
1 x 32 pages: AA
2 x 16 pages: AB

Machine configuration:
Reel Transport System :
Type: Manroland MANUload

Reel Splicer :
Type: Manroland MegTec DLC 2100

Infeed Unit :
Type: DSA 180
Integrated in Reel Splicer

Printing System :
Plate changer: PPL for automatic plate changing

Dryer :
Type: MegTec MegAir Compact 80
with adjustable rehumidification

Folding System :
Superstructure:
Max. number of webs: 2

Folding Unit :
Type: GFI 5B/1 (1:5)
Longitudinal perforation or slot device
Paper guiding with gripper system

Funnel fold :
Max. number of webs: 2

Knife roller cylinder :
Number of cutting knives per circumference : 1

Control Unit:
PECOM ControlCenter
