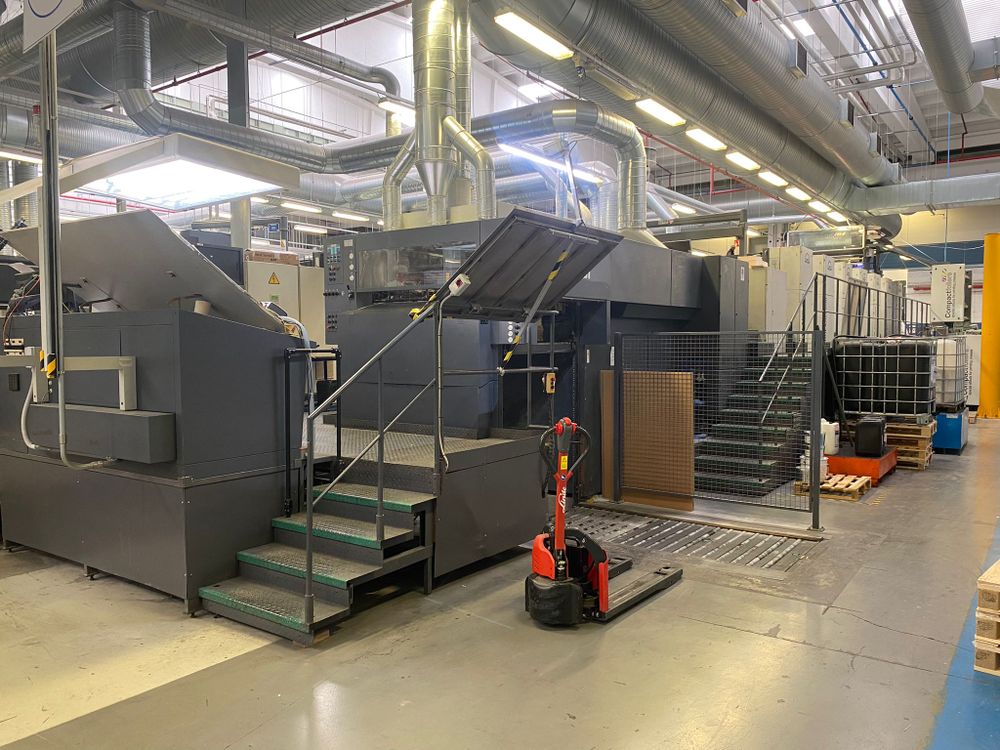

MAN Roland R 907-6+ LV + FOIL 1,020 x 1,420 mm

2016 Compact Foilers Unit for Cold Foil Application.
Impressions: 200 million
Configuration: 7 colors + coater
Maximum sheet size: 1,020 x 1,420 mm
Minimum sheet size: 600 x 850 mm
Complete machine newly built with standard accessories
Feeder logistics system with waiting capacity for 2 pallets in addition to processing time
Aupasys type 6M pile turner
25 special pallets for feeder logistics
Automatic Non-Stop feeder system
Antistatic bars in feeder for plastic materials
Ion or Vac Oxy Dry suction device
Inking temperature control including cooler
Automatic brush washing device for printing cylinders
First printing unit with bivalent rollers
Six subsequent units with conventional rollers
Separate containers for washing liquids
Predisposition for 667 mm elevation
Predisposition for interdeck UV dryers between printing units
Coating unit with doctor blade system and ceramic anilox roller (capacity to be defined)
Delivery extension of 2,477 mm
Predisposition for IR/hot air dryer installation
Remote axial/circumferential register control
Diagonal register on Transferter
Quick bar closure
Brush blanket washing system
Blowing device for impression cylinders
Roller change lifting device
Motorized printing pressure adjustment
Additional anilox roller
Automatic brush washing device for coating unit cylinders
Automatic Non-Stop delivery system
Quick Change Coating Unit system for fast coating changes
VariAir system
Delivery logistics pallets
Set of spare rollers: 1 bivalent rubber-coated unit, 4 inking rollers and 1 conventional take-up roller
PrePress Link software
JobPilot software
Network server software (network connection and hardware costs to be borne by the customer)
Print monitor
JobCard Drive with 100 job cards
Antistatic bars in delivery
2 interdeck UV lamps (positionable between units)
1 IR/air/UV dryer after coating unit
Machine running — available immediately
