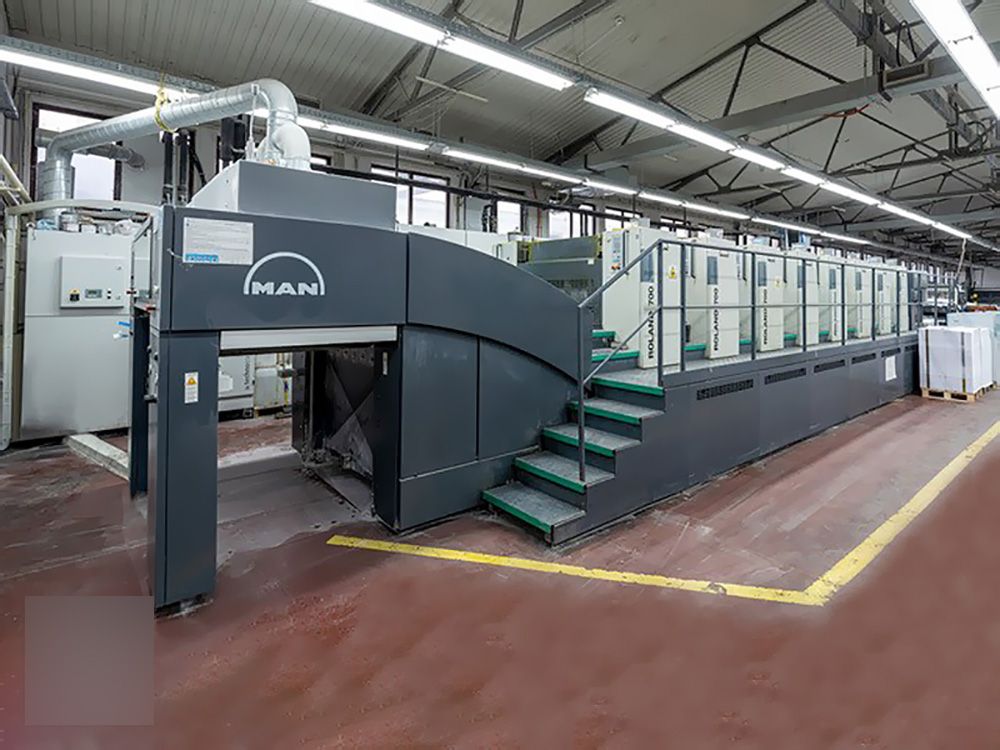

MAN Roland R708 3B P DirectDrive 740×1'040 mm

The 700 series multifunctional 8-color sheetfed offset press features DirectDrive technology , saving up to 60% setup time compared to a conventional press.
Equipment:
table with vacuum belts with sheet slowdown,
antistatic Eltex
QuickChange Job
Automatic adjustment to the format, to the thickness of the printed material, humidification Rolandmatic Delta + Alcosmart,
Adjustment of the circumferential
Transverse and diagonal register
Colorpilot control panel ink density measurement system at full operating speed
Inlinecolorpilot, remote adjustment of the ink supply
Automatic separation of ink units, central adjustment of the axial stroke of the ink rollers
Speed compensation for ink and dampening units
dampening unit ductors with a ceramic coating
InlineObserver, automatic washing device for ink rollers and offset blankets
fully automatic change of printing plates APL ROLAND DirectDrive, rear bar for fixing printing plates
divided into seven segments, perfecting device (8/0 or 4/4)
OptiPrint Jackets for the printing cylinder after perfection, visually controlled sheet guidance in the delivery
AirGlide QuickChange Air Weko AP262 water-cooled engraving , offset and printing cylinders
260 million impressions

Maximum format 740×1'040 mm
Minimum format 340×480 mm
Maximum printing format 715×1'040 mm
Printed material 0.04 - 0.6 mm
Speed ​​up to 16'000 sheets/hour
Feeder pile height 1'180 mm
Delivery pile height 1'080 mm
Overall dimensions 15'253×3'602×2'137
