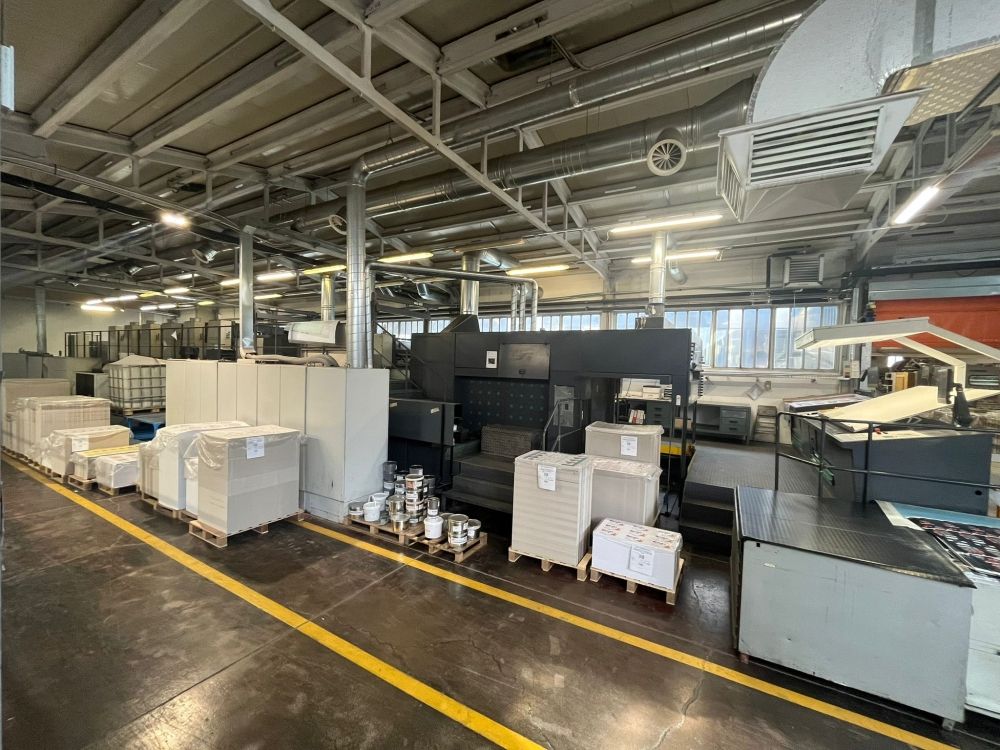

MAN Roland R906-6 LTTL 5 1020 x 1420 mm

Total impression count 405 mio approx
Sheet-fed offset press - Printing units: 6 + 2 coater units + 2 towers dryer units
5 unit with conventional rollers + 1 unit with hybrid rollers
High pile and extended delivery

Technical features:
Speed 13.000 copie/h
Paper size max 1020 x 1420 mm
Paper size min 600 x 850 mm
Thickness 0,2-1 mm
Print size 990 x 1400 mm
Plate size 1165 x 1430 mm Thickness 0,30 mm
Blancket size 0000 x 0000 mm Thickness 1,90 mm
Dimensions :
L. 25,00 mt. circa
P. 4,70 mt.
H.2,70 mt.
Power requirement Kw 00 approx
Weigh 140.000 Kg. circa

Accessories included:
- Non stop feeder
- Steel plate on feeder
- Stream feeder with vacuum belt
- Preset (autom. paper size and thickness setting)
- Electronic double sheet detection
- Electromechanic double sheet detection
- Electronic side lay control, fotoelectronic and akustic
- Anti-static on feeder and delivery
- RCI machine control and diagnosis by monitor console /self diagnostic, control and monitor console; remote inking; dampening; axial,
circumferential and diagonal register control with light pen; day light illuminator and memory card for job memories
- Multi CCI 2D quality control
- APL™ full automated plate changing
- Remote-controlled circumferential, lateral and diagonal register
- Rolandmatic continuous dampening system with alcohol metering; cooling and re-circulation unit system Technotrans Beta D
- Ink temperature control
- Programmable automatic blanket cylinders wash up
- Programmable automatic rollers wash
- Raised 570mm
- Chromed cylinders
- AIRGLIDE Sheet travel
- Anilox Coating Unit UV with varnish pump
- 2 Hot air towers between the 2 coater units
- Anilox Coating Unit Conventional with varnish pump
- Automatic sheet de-curler
- Powder sprayer Grafix Cantronic 3000
- IR ELTOSCH dryer
- UV ELTOSCH dryer with 3 lamps
- Extended delivery
- Steel plate on delivery
- Non stop feeder
- Tools, Documentations
- Complete with all standard parts and accessories
Availability: immediately
Conditions: Good machine with no damages on cylinders and gears
