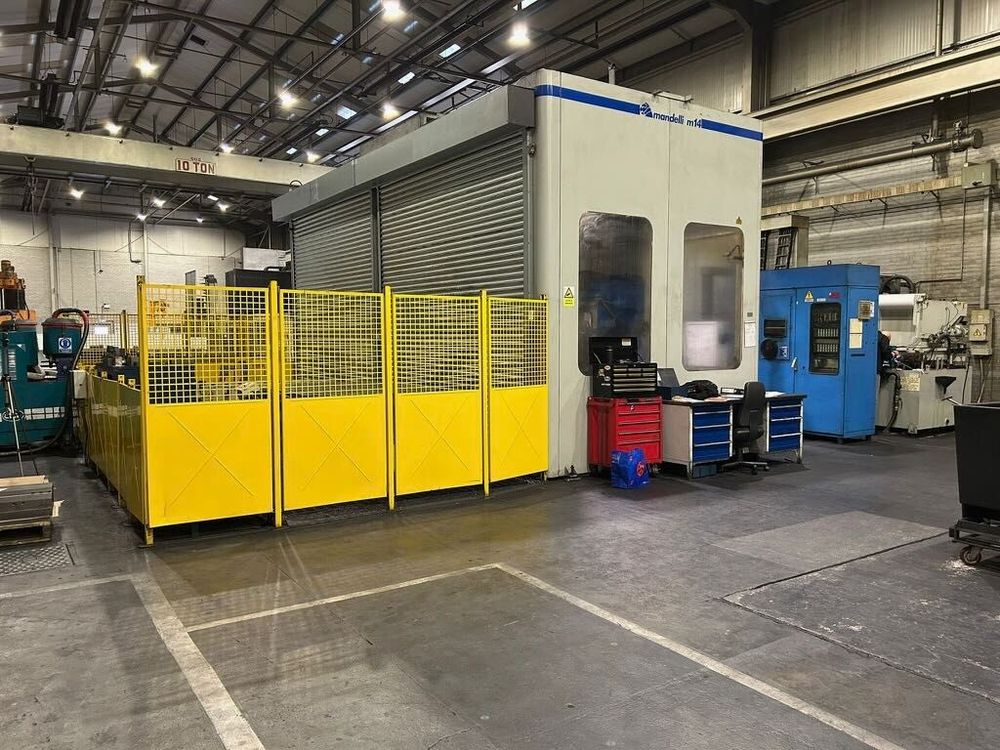

Mandelli M14 5 Axis

X-axis travel 4000 mm
Y-axis travel 2500 mm
Z-axis travel 2200 mm
Feedrate 5–15000 mm/min
Rapid traverse 15 m/min
B-axis rotation 0.001°
B-axis rapid 3 rpm
Head rotation 90° horizontal to vertical
Maximum component diameter 3200 mm
Maximum component height 2500 mm
Pallet size 2000 × 1600 mm
Max pallet load 8000 kg
ATC capacity 100 positions
Spindle speed 20–3000 rpm
Spindle taper 50
Spindle motor 40 kW
Footprint 13 m × 11 m × 4.9 m
Maximum foundation depth 2.4 m
Machine weight 80 ton
CNC control Siemens Sinumerik 840D

Renishaw probing
2 Capto C4 right-angled heads
Tooling package
Interlock guards
Paper filtration system
Swarf conveyor 2 metal units
Chiller unit
Flood coolant
Through-spindle coolant
