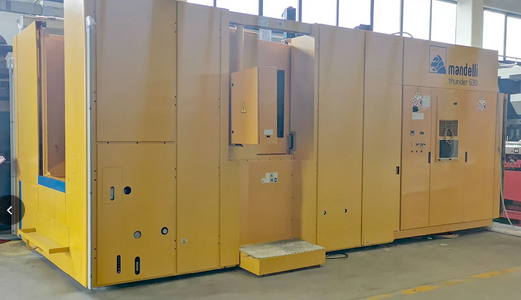

Mandelli THUNDER 630 4 Axis

Control: FANUC 16i-M
Longitudinal travel (X) 1000 mm
Transversal travel (Y) 850 mm
Vertical travel (Z) 850 mm
Table divisions (B) 0.001°
Pallets 10
Pallet length 630 mm
Pallet width 630 mm
Pallet change time 12 s
Tool magazine capacity 160
Tool diameter 150 mm
Tool length 400 mm
Max tool weight 20 kg
Tool change time 1.8 / 3.5 s
Spindle nose HSK 63
Spindle speed up to 12000 rpm
Feed range 10–50000 mm/min
B-axis rotation 20 rpm
Spindle motor 37.7 kW
Table load 800 kg
Machine length 9643 mm
Machine width 5848 mm
Machine height 3824 mm

High-pressure coolant 60 bar
Chip conveyor
