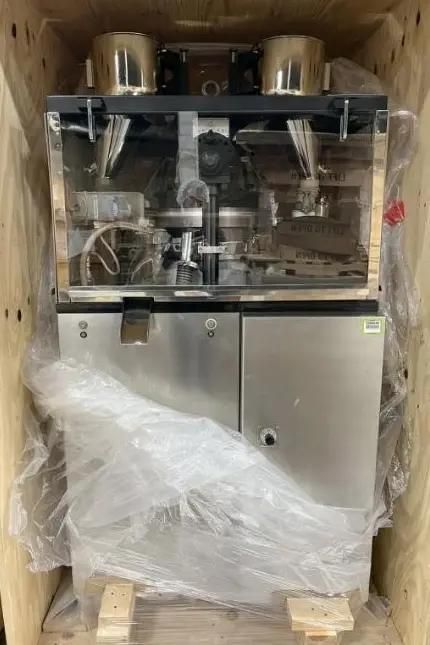

Manesty BB4 Tablet Press

MACHINE CHARACTERISTICS
Number of stations: 35
Die diameter: 30.16 mm
Die height: 22.2 mm
Upper/lower punch length: 133 mm
Upper punch entry: 1.5 - 8 mm
Maximum tabletting pressure: 0-65 kN
Pressure roll diameter: 203 mm
Die type: Euro B

PRODUCTION CHARACTERISTICS
Output: 70.000 - 210.000 tablets/hour
Maximum tablet diameter: 16 mm (oblong tablets: 19 mm)
Maximum depth of fill: 17.5 mm

ENERGY CONSUMPTION
Power: 3 KW - 1500 r.p.m. at 50 Hz

DIMENSIONS
Size: 1,179 x 1,142 x 1,940 mm (approx)
Weight: 1,000 Kg (approx)
