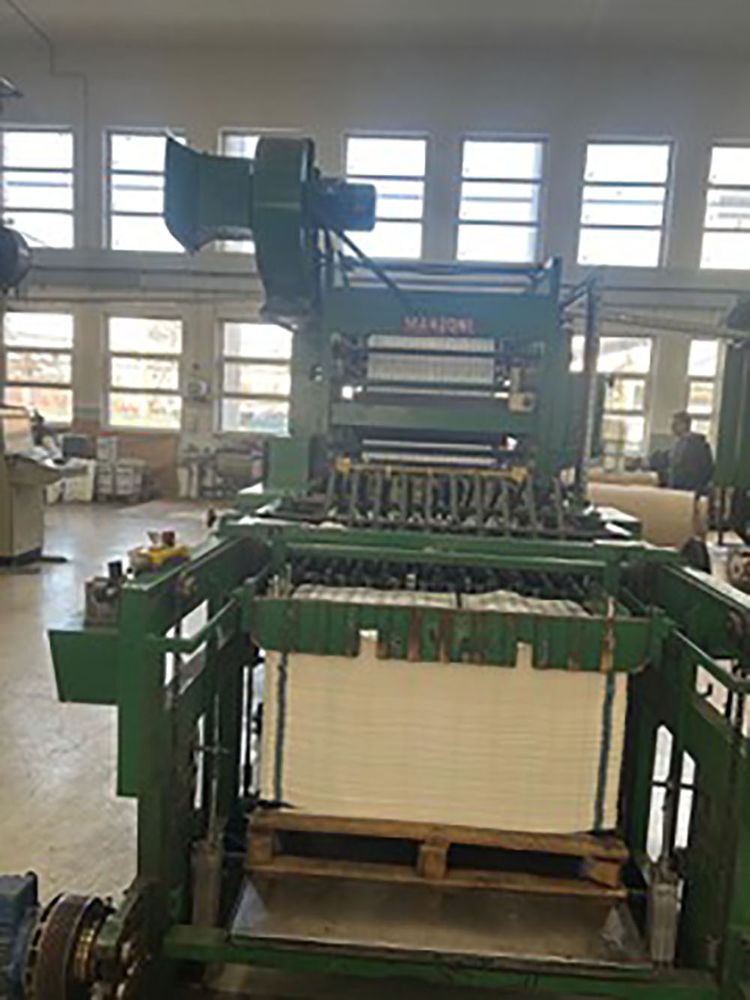

Manzoni NESA.50NR1336/1336/2 - T.C.T 3 70>10 cm

Sheeter + in-line flexo + in-line Laminator
Type: 100x100
General dates of this line:
Installed power: (kw/h) 40
Hourly consumption of electric power (kwh) theoretically equal to the 50% of the installed power
Operational pressure: Atm 6
Materials to process: papers
Paper weights: 30 to 100 grs
PE weight/thickness: 8 to 20
Thickness of the lamination sheet: (mycrons) 6>7
Inks: water/solvent
Cliché thickness: (mm): 2,54
Mechanical speed: (ml/min) 100
Work speed: (ml/min) according to materials paper+PE
Machine overall dimensions: (m) 10X5X3 (LxPxA)

Machine features:
Main unwinder
Width: (cm) 70>100
External Diameter (cm) 80>120
Machine loading system: pneumatic/hydraulic table
Max reel weight: (kg) 1300

Secondary unwinder: for HDPE
Width: (cm) 80:102
External diameter: (cm) 70>80
Machine loading system: manual
Max reel weight: (kg) 250

Printing unit - work width: (cm) 100
Number of printing units: 3
Lamination unit: 1

Cutting unit
Working width: 70 to 100 cm
Minimum cutting depth: 50 cm
Max cutting depth: 88 cm

Printing unit: working width: (cm) 70 to 100
Number of printing units: 3
Central drum: no
Print step: 25 to 40 cm
Note:
Drying tunnel by electric resistances

Rewinding machine
Width: (cm) 70 >100
External diameter: (cm) 80 to 90 cm
Unloading system: manual
Max reel weight: (kg) 450

Print rollers of the machine: 22 pieces
Machine MT4-2
Roller length (mm):
250 4 1000
380 4 1000
400 4 1000
300 4 1000
350 4 1000
320 2 1000
330 2 1000
