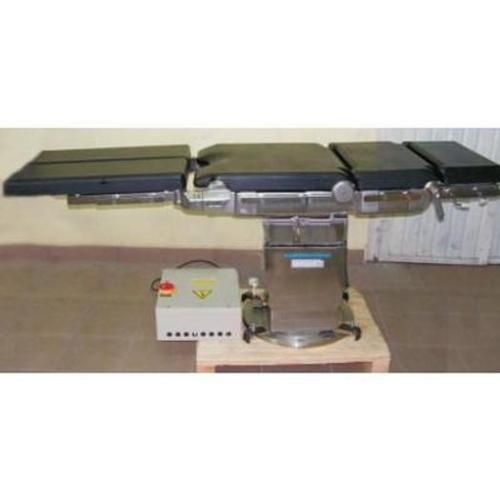

Maquet Alphamaquet 1150

Features
Universal or specialised tray depending on the discipline
Accessories available in radiolucent carbon (360°)
Electropolished stainless steel surfaces for optimal hygiene
PUR foam or special SFC foam padding (latex-free, anti-static)
Smooth, jerk-free motorisation
Multiple controls (wired, infrared, foot, wall, OR1® voice)
Automatic zero position adjustment
Tray acceptance from the head or foot (sensor-activated)
Mechanical cleaning and decontamination compatible
TRANSMAQUET patient circulation system
Mobile or fixed column with 350° rotation
Electronic tray locking system
Interface for integrated OR central controls
Accessory detection and automatic locking via transponder

Technical Details
Total length: 2260 mm (with head plate 1130.53 and standard back plate 1150.31)

Width:
Tray only: 500/540 mm
With side rails: 540/580 mm

Adjustable height:
Column 1150.01/02: from 725 mm to 1215 mm

Tilt angles:
Front/rear: 40° / 40°
Left/right: 25° / 25°
Backrest angle:

Up: 70°
Down: 60°
Leg plate angle:
Up/down: 90° / 90°
Longitudinal translation: 320 mm

Load capacity:
Column 1150.01: 180 kg + 20 kg accessories
Column 1150.02: 225 kg standard, up to 360 kg maximum (plus 20 kg accessories)


Compatible Accessories
Specialised surgical trays:
Universal (1150.30)
General surgery/MIS (1150.22)
Traumatology/orthopaedics (1150.20)
Vascular/interventional (1150.16, 1150.23)
Neurosurgery/ENT (1150.25)
Paediatrics (1140.14)
Ophthalmology (1140.17)

Carriers:
Rigid (1146.60A0)
With quick Trendelenburg tilt (1146.61A0)
With tilt + adjustable height (1146.62A0)

Specific accessories:
Headrests, modular backrests
Leg plates with transponder technology
Extensions for trauma care
Fixation rails for radiology cassettes
Infrared/wall-mounted/foot-operated controllers
OR1® voice interface
