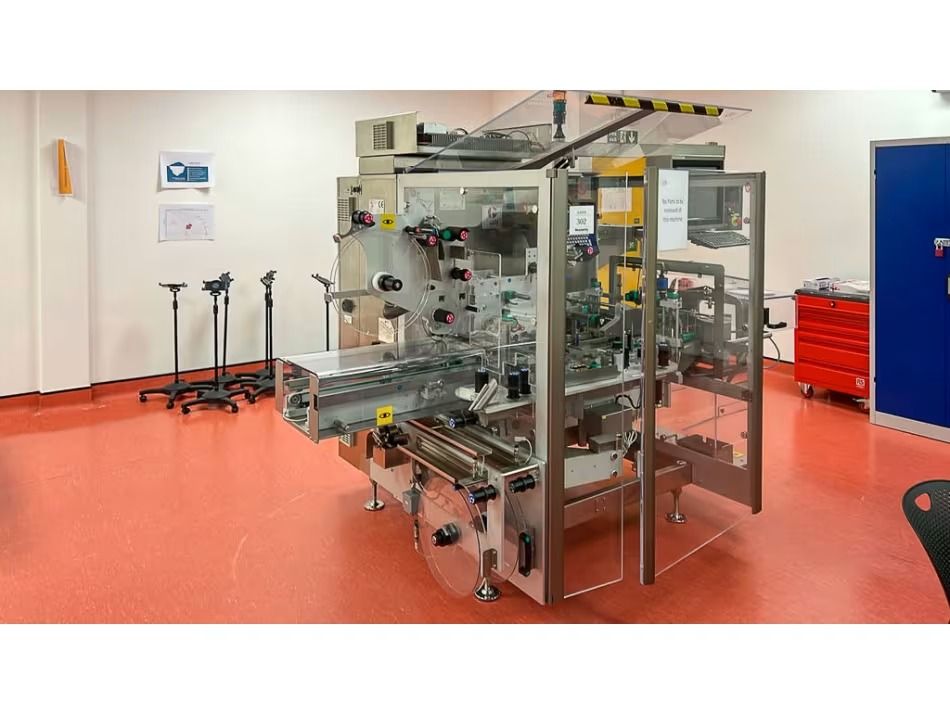

MARCHESINI BL400 VTETT blister

Power supply at 400 Volt, 3 phases, 50 Hertz, Earth & Neutral wiring;
Electrical panel on board;
PLC SIEMENS;
TP700 Touch Screen operator terminal, 5.7″ color. Seven levels of passwords;
Accident prevention guards in aluminum and methacrylate. Schmersal type safety switches;
Stopping the machine if a door is opened;
Compressed air control pressure switch. With machine stop at low level detection;
Outgoing cartons counter;
Rejected cartons counter;
Work hour counter;
The machine is equipped with all the safety devices necessary for safe and standard-compliant operation;
Delivered with CE mark;
Production speed: up to 400 pieces/minute;
Switching is done without any extra size parts as only a few adjustments are needed.

Case format
A (width): Min 20 mm - Max 120 mm
B (thickness): Min 15 mm - Max 90 mm
H (length): Min 70 mm - Max 250 mm

Stamps
A (length): Min 15 mm - Max 80 mm
B (height): Min 20 mm - Max 60 mm

Seals
A (length): Min 15 mm - Max 60 mm
B (height): Min 15 mm - Max 30 mm
Label speed
From 0 to 60 metres/minute
Roll diameter
Maximum 400mm

Core diameter
45 or 75mm

Production speed
up to 400/pcs. min
