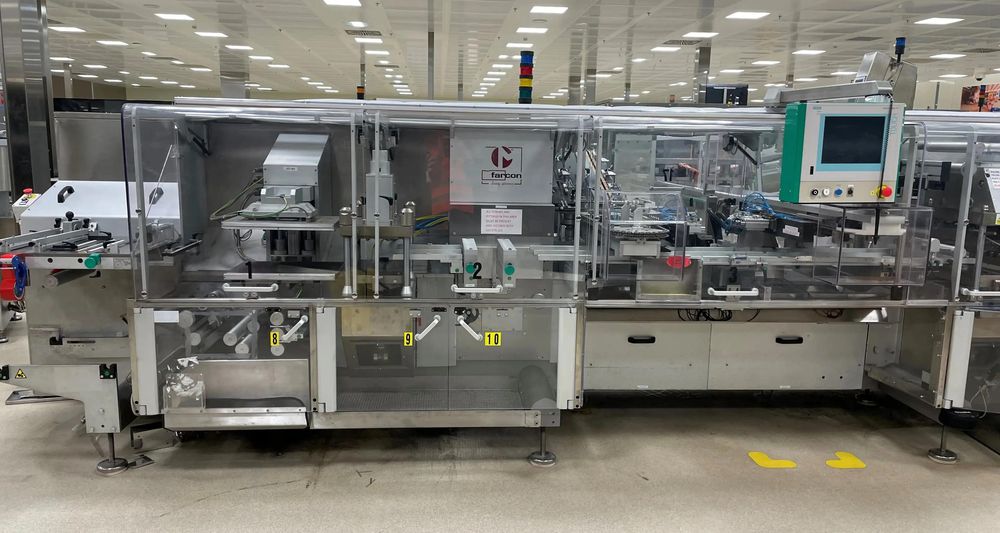

Farcon, MARCHESINI FB420, Thermoforming Machine

PRODUCTION CHARACTERISTICS
Output: 48.000/h (max)
Outfeed height: 800-860 mm
Films: PVC, PET, Polystyrene (PS), PP, PLA, multilayer laminates
Forming/Sealing (Intermittent motion): 8-50 cycles/min
Standard Cutter: 8-50 cycles/min
Max forming depth: 42 mm
Forming area: Film width (A): 254 mm Film index (B): 320 mm (max)
Die-cutting area: Film width (A): 248 mm Film index (B): 310 mm (max)

ENERGY CONSUMPTION
Frequency: 50 Hz
Max load current: 50 A
Safety trip out: 10 kA
Installed power: with sealing station: 36 Kw; without sealing station: 30 Kw
Cooling water consumption: with sealing station: 370 L/h (approx); without sealing station: 300 L/h (approx)
Compressed air consumption (6-8 bar): with sealing station: 1150 Nl/min; without sealing station: 1000 Nl/min

DIMENSIONS
Net weight: 7000 Kg
