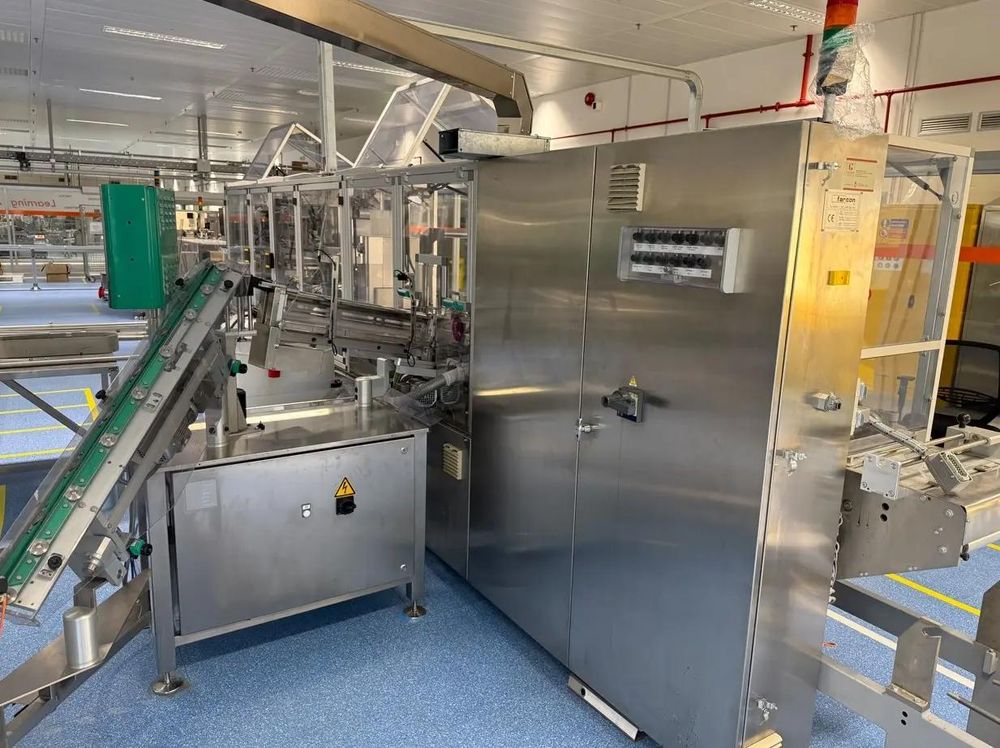

MARCHESINI FC420, Blistering Machine

MACHINE CHARACTERISTICS
independently servo-driven machine stations
machine cycle-speed adjustable from the main HMI
easy, tool-less change over
Pick-and-Place for products
ready for connection from/to in-line integrated machines

PRODUCTION CHARACTERISTICS
Output: max 48.000/h
Outfeed height: 800-860 mm
Max draw depth: up to 42 mm
Mechanical speed (Forming/Sealing, intermittent motion): 8-50 cycles/min
Mechanical speed (Standard Cutter): 8-50 cycles/min

Max forming area
Film width (A): 254 mm (max)
Film index (B): 320 mm

Max die-cutting area
Film width (A): 248 mm
Film index (B): 310 mm

ENERGY CONSUMPTION
Installed power: with sealing station: 36 Kw; without sealing station: 30 Kw
Compressed air consumption (6-8 bar): with sealing station: 1150 Nl/min; without sealing station: 1000 Nl/min
Cooling water consumption: with sealing station: approx. 370 L/h; without sealing station: approx. 300 L/h

DIMENSIONS
Net weight: 7,000 Kg
