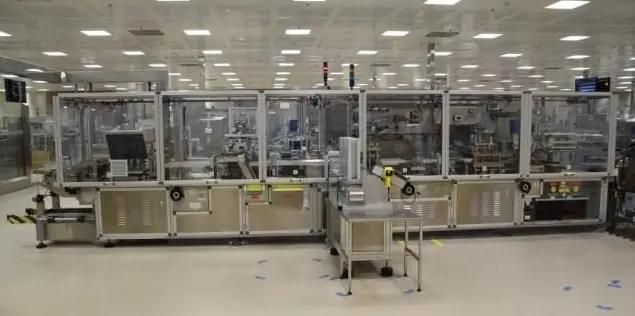

MARCHESINI FC420

PRODUCTION CHARACTERISTICS

Output: max 48.000/h
Draw depth: up to 42 mm
Mechanical speed (Forming/Sealing, intermittent motion): 8-50 cycles/min
Mechanical speed (Standard cutter): 8-50 cycles/min
Outfeed height: 800-860 mm

Max forming area
Film width (A): max 254 mm
Film index (B): 320 mm

Max die-cutting area
Film width (A): 248 mm
Film index (B): 310 mm

ENERGY CONSUMPTION
Installed power
with sealing station: 36 Kw
without sealing station: 30 Kw

Cooling water consumption
with sealing station: approx. 370 L/h
without sealing station: approx. 300 L/h

Compressed air consumption (6-8 bar)
with sealing station: 1150 Nl/min
without sealing station: 1000 Nl/min

DIMENSIONS
Net weight: 7000 Kg
