MARCHESINI PS

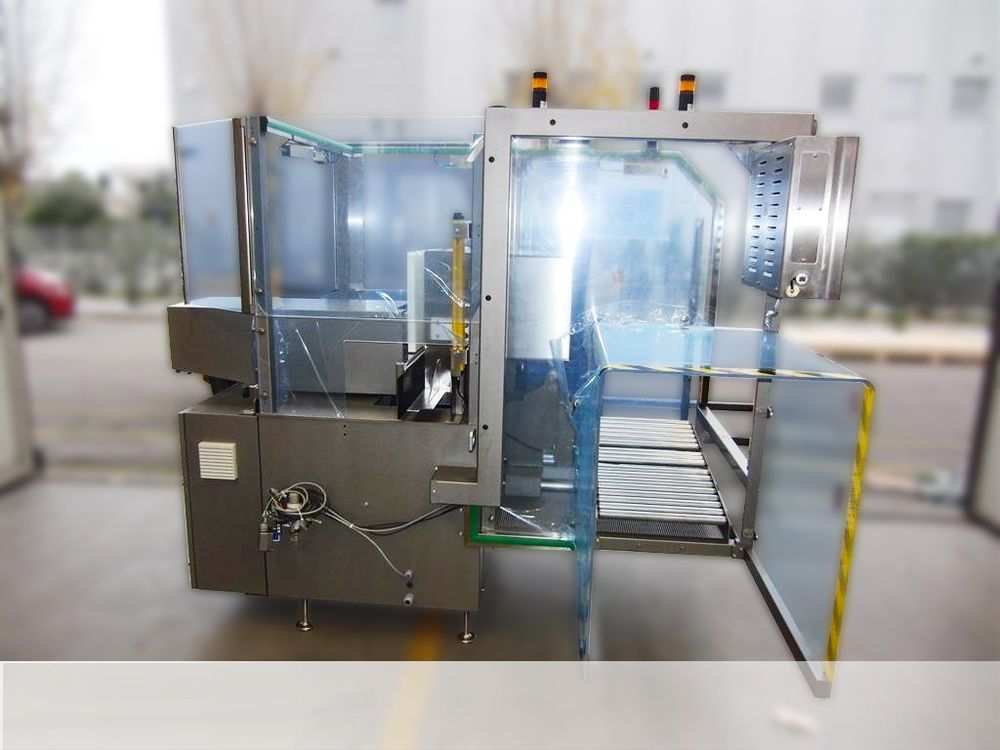

The Marchesini PS300 is a semi-Automatic machine suitable to receive single or bundled products on infeed conveyor,
collate and introduce them into a manually formed case placed in front of the loading hopper, discharge the case.

Main Features
The basic machine consists of st.st frame and covers, Anticorodal parts and it is delivered with the Πmark.
Machine safety guards complete with:
1 Optical Safety Barrier placed at the in-feed of the manual case loading zone.
1 Optical Safety Barrier placed in the product elevation and collation zone.
1 Optical Safety Barrier placed horizontally in the case loading area to prevent the operator stopping.
Carton infeed conveyor 1650m (64,96”) long with speed adjustment.
Pneumatic commands of working groups (without compressor).
Station for Cartons collation in the hopper
Stainless steel size parts in AISI 304 S.
In-feed guides for cartons on the elevation section, adjustable by handwheel.
Fix product collation hopper in stainless steel AISI 304S.
Loading platform for the manually formed case and automatic turning.
Motorized cartons pusher.
Idle roller conveyor at the exit.

Functional Features
The semi-automatic Case-packer PS-300 accepts preformed cases and manually fed in front of the product hopper.
Cartons presented in in-feed at a height of 850-950mm (33.5” – 37.4”) are conveyed by a conveyor to the collation unit.
Through the loading platform, the collation hopper is supported during product insertion.
Case positioning phase on the hopper is authorized by the machine.
After the product transfer into the case, the platform moves back and the idle roller belt discharges the full case without a tape closure.

Included
Machine complete in all parts equipped to handle one size product in in-feed, one collating pattern and one case size.
