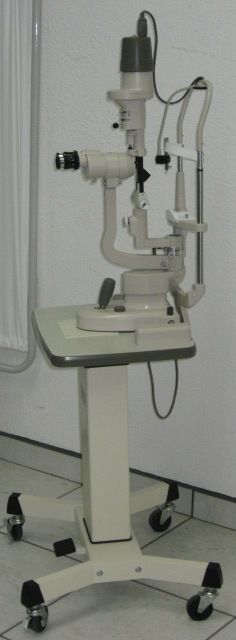

Marco 2B Ultra Series

Features:
Combines remarkable ease of use and value with the same high optical qualities
and precision construction found in other Ultra Series models.
Ideal for general examination procedures and contact-lens work.
Single-handed elevation joystick.
Halogen illumination standard.
Pencil-point fixation light.
Four built-in filters.
0 to 10mm slit width.
Rheostat conveniently located next to joystick.
Hruby lens kit and patient hand rests optional.
Finds wide acceptance in satellite offices as well as in larger practices with
multiple lanes of equipment.

Specifications:
Microscope
Type: Greenough converging-binocular microscope
Magnification changing system: Two position revolving objective
Eyepieces: 10x
total magnifications: 10x, 16x
Real fields of view (diameters): 18mm and 15mm
Interpupillary adjustment: 48mm - 80mm

Slit Lamp
Slit projection: 0.8x
Slit width: 0 - 10mm, continuously variable
Slit lenght: 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm
Aperture diaphragms: 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm
Filters: Heat absorbing, UV, red-free, & cobalt blue

Cross-Slide Base
Longitudinal movement: 90mm
Lateral movement: 110mm
Vertical movement: ± 15mm
Horizontal fine movement: ± 7.5mm

Chinrest
Fixation lamp: LED (red)
Vertical movement: 78mm

Power
Input voltage: AC 110V, 120V, 220V, and 240V
Maximum power consumption: 40VA

General
Weight: 39.6 lbs. (18kg)
Lamp: 12V/30W halogen bulb
Tabletop dimensions: 21.5 in. x 13.5 in. (550mm x 350mm)
Color/finish: Misty Grey with durable Hammernet finish
