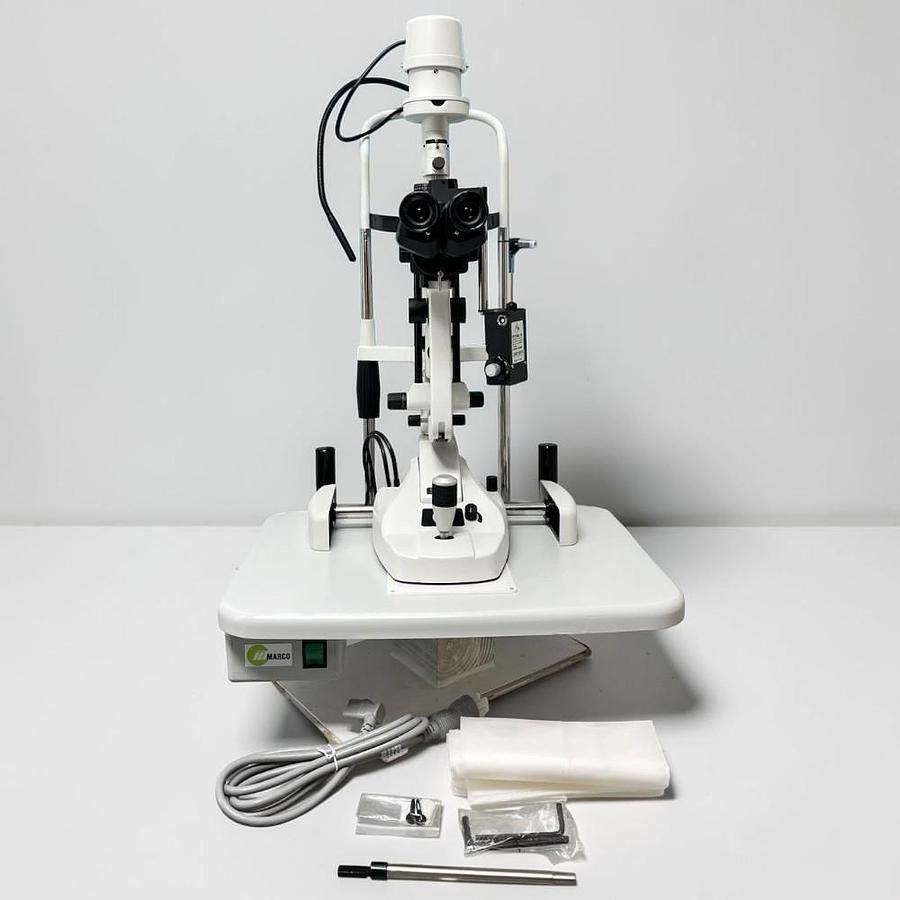

Marco SL-B3 LED Slit Lamp

The Marco SL-B3 LED Slit Lamp is a current model unit.
It is a 3X magnification LED unit (10,16,25) with the rheostat on the base.
The M2 comes fully refurbished by an in house trained and certified technician.
We check each unit mechanically, optically, and cosmetically
with FREE lifetime phone support and a 6 month parts and service warranty.

FEATURES
Tower-style illumination
3-step magnification (10x, 16x, 25x)
Parallel/Galilean optics
Patient fixation target is a red LED on a continuously flexible shrouded cable
Self-contained headrest and base plate assembly

SPECIFICATIONS:
Optical System
Binocular Type: Galilean Parallel (8° Converging)
Magnification: 10x, 16x, 25x
Eyepiece: 12.5x
Field of View: 22, 14, 8.5 mm
PD Range: 49–77 mm
Diopter Adjust: -8 to +8 D
Objective Lens Focal Distance: 107 mm
Objective Lens Convergence Angle: 13°

Slit Projection System
Slit Width: 0–12 mm Continuously Variable
Slit Length: 12 mm (1 mm–12 mm Continuously Variable)
Aperture Diameters: 0.2, 1 mm Square, 2, 3, 5, 9 and 12 mm
Filters: Clear, Red Free, Neutral Density, Blue, Yellow, Diffuser Lens, IR Heat Absorbing Filter Permanently Installed
Slit Angle: +/- 90° Continuous
Slit Rotation: +/- 180° with Reference Scale
Slit Vertical Tilt: 0°, 5°, 10°, 15° and 20°

Base, Movement, and Light Source
Base Travel: 25 mm Z‒Axis, 107 mm X‒Axis, 110 mm Y‒Axis
Horizontal Fine Adjustment: 12 mm
Chinrest Elevation Adjustment: 70 mm
Table Top Dimensions: 405 x 500 mm
Fixation Lamp: Flexible LED
Light Source: LED
