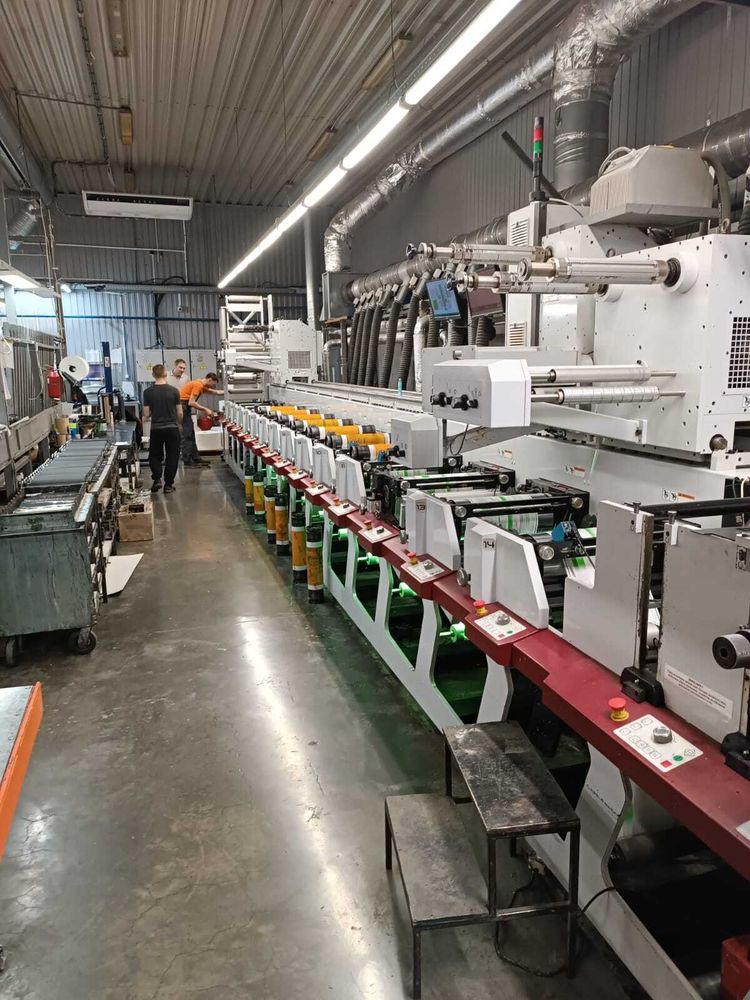

Mark Andy Performance P5 14 330 mm

This narrow-web flexographic printing press is used for printing self-adhesive labels and labels on unsupported film materials.
It features a fully servo-driven design.
Width: 330 mm
Color density: 14
Manufacturer: Mark Andy (USA)

EQUIPMENT:
Roll feed (servo drive), pneumatically expandable 76 mm spindle.
Maxcess automatic web edge alignment system
Vetaphone single-sided corona machine

Flexographic printing unit with servo drives — 14 units.
Automatic register
Pre-register pre-register system
Vari Print system for continuously variable print repeats
Plate cylinders for 1.7 mm plates and 0.38 mm adhesive tape
GEW (UK) E2C series UV dryers after each printing unit — 14 units
Large-diameter printing cylinders with water-cooled web
Refrigerator-recirculator
UV dryers for printing units 1-13 are located in the middle, the UV dryer for printing unit 14 is located below,
and the UV dryer is located above the 12th printing unit.
Two Stork screen printing units can be installed on any printing unit.

Two rotary die-cutting units
Waste winding system
Support cylinder with adjustable gap

Rails above the machine
Double-sided corona machine, laminator, and cold foil stamping unit on rails. Web turning on rails

Web slitting
Roll delivery (winding) with a pneumatically expandable 76 mm spindle
Video monitoring and 100% inspection system
Anilox machines
Plate and magnetic cylinders
