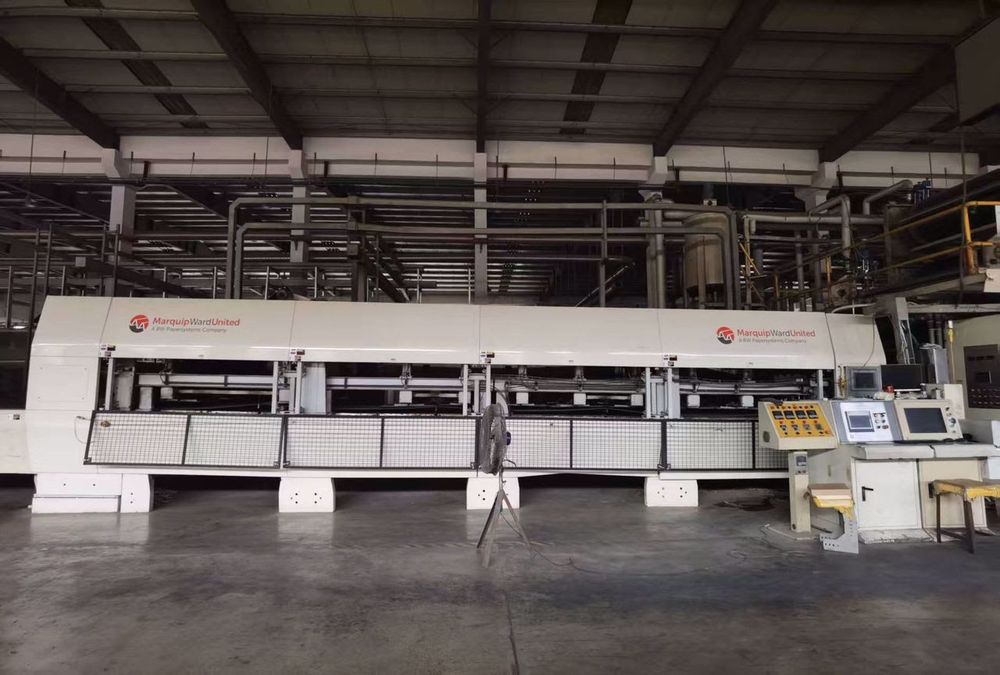

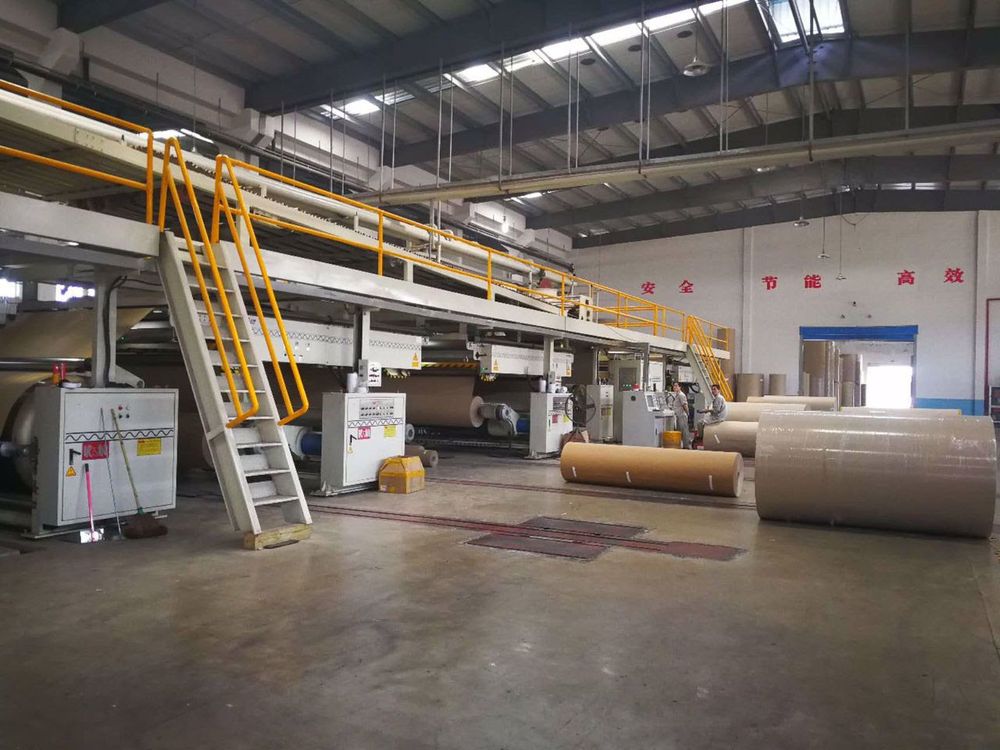

Marquip 2500 2500mm

SEVEN PLY CORRUGATOR
Speed 300m/min
Power 380v 50HZ 3 Phase 4 Wire
Fully hydraulic mill roll stands 7 units
Preheaters-10 units
Three cassette single facers, BCE flutes
Seven auto splicers
Overbridge with EL
Four-ply preheater (Taiwan); Four-ply gluing machine (Taiwan);
Double baker plates (Marquip Ward United-USA); Press board loader and cooling section (MarquipWardUnited);
Driving section (with EMG device);
One N.C.Slitter Creaser (7 blades 12 scorers) (MarquipWardUnited);

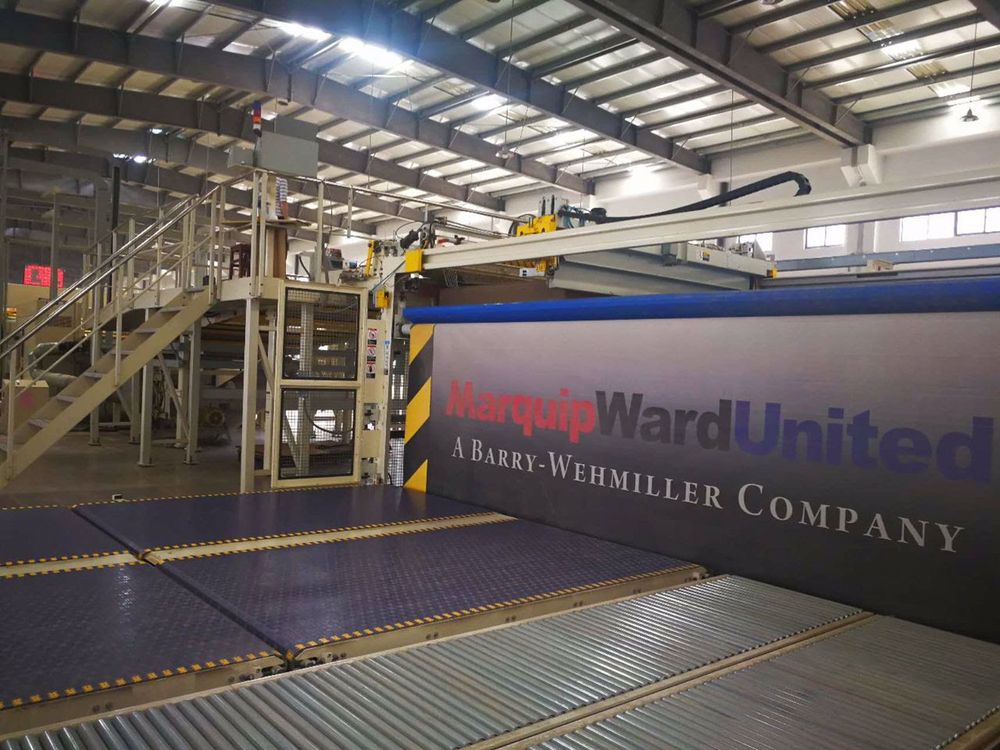

One Hang basket auto stacker(MarquipWardUnited-max. length:5.7m;
Breaking blower;12 sets of Ground rails with 14 sets of paper roll feeding casters
Temperature control system one set
Production management system one set
Paperboard logistic roller conveyors two sets; Gluing storage tanks 3 sets
Spare cassette module+corrugating rolls two sets-BC flutes
Roll change trolleys-3 sets
Corrugating rolls-three sets-BCE
Paper delivery direction LEFTWISE
Yuhuan production management system
MarquipWardUnited + K&H control system one set respectively
Glue storage tank 4 sets
Remarks: not including boiler, air compressor and glue kitchen.
Max paperboard cutoff length 5700 mm
Max width 2500mm
