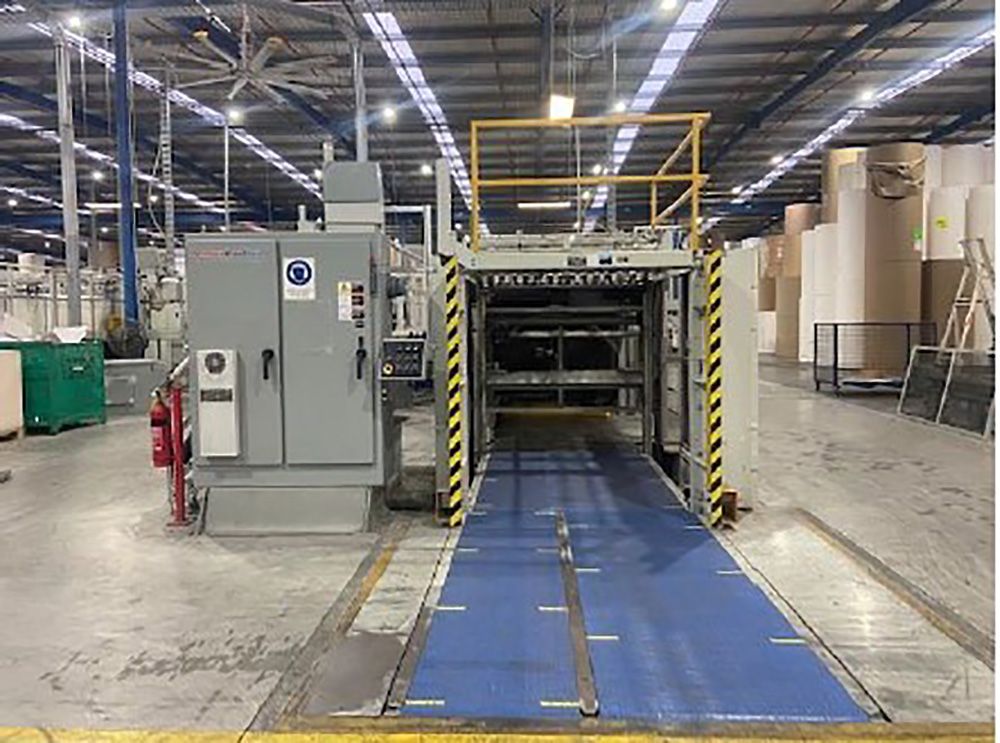

Marquip, Ward Sheet cutter/cross cutter

Technical Parameter Metric (Product Detail) Imperial (Options):
Sheet Width (max.) 1650 mm 65"
Reel Width (optional) 1700 mm 67"
Reel Diameter (max.) 1850 mm 73"
Reel Weight (max.) 3410 kg 7500 lbs
Core Diameter (min./max.) 70 mm 3"
Speed (max.) 335 m/min 1100 ft/min
Length Accuracy (Single Web) ±0.38 mm ±0.015"
Length Accuracy (Multi Web) ±0.76 mm ±0.030"
Knife Capacity 1000 gsm —
Slitter Capacity 600 gsm —
Sheet Length (min./max.) 400 mm – 1650 mm 15.75" – 65"

Key Features:
Dual-Rotary Knife System with tangentially mounted blades for clean, consistent cuts
Vacuum Knife Trim System for dust-free precision
460 mm Knife Lift Stroke for high-speed sheet orders
PC-Based Control System with menu storage and remote diagnostics
Liquid-Cooled Motor & Drives for reduced noise and energy efficiency

Technical Highlights:
Max Sheet Width: 1650 mm (65")
Reel Diameter: Up to 1850 mm (73")
Reel Weight: Up to 3410 kg (7500 lbs)
Length Accuracy: ±0.38 mm (Single Web), ±0.76 mm (Multi Web)
Material Capacity: Knife – 1000 gsm, Slitter – 600 gsm

Optional Upgrades:
Automatic Decurling Rollers
Web Cleaning System
Splice-to-Splice Detection
Automatic Pallet Change
Advanced Programming Option
