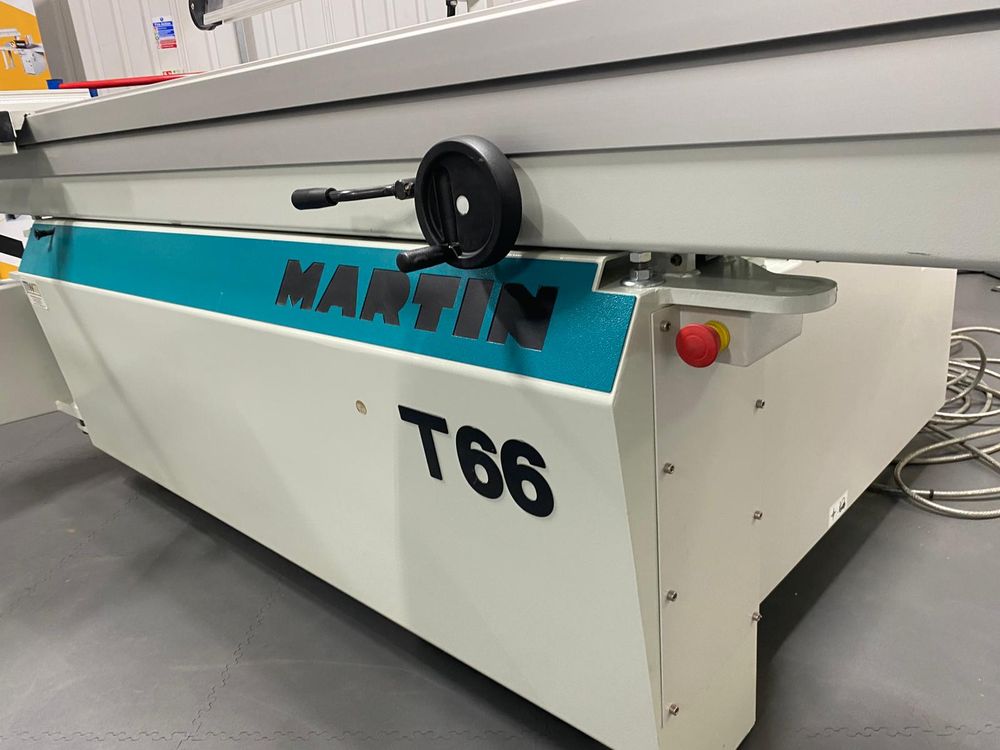

Martin T66

Following Options Installed on to this Machine:
Motor Power 4.0 Kw
Sliding Table Length 3.0 M
Cutting Width 1350 Mm
Rip Fence Adjustment Via Hand Wheel
2-Axes Scoring Saw Unit, Electrically Adjustable
Safelight For Scoring Saw
Standard Cross-Cut Table for Angle Cuts Of Approx. Up To Ca. ± 47°
Premium Cross-Cut Fence, Analogue With 2-Point Support
Rear Table Extension 700 X 855 Mm – Standard

Technical Specifications :
Sliding table length : 3000mm
Table size : 855 x 1100mm
Cutting width : 1350mm
Tool Swivel : 0° to 47° x 1
Motor : IE4 SynchroDrive
Motor Rating : 4.0kW (5.5HP)
Rotational speed : 1000– 5000 rpm
Main saw blade change : ProLock
Control System : Touch Screen
Table height : 900mm
Tool exchange : ProLock quick exchange system
Cutting height at 90° : 155mm
Cutting height at 45° : 110mm
Saw blade diameter : Up to 450mm
Display resolution : 0.1 mm | 0.1°
Extraction connection : 120 mm on frame | 80 mm on guard
