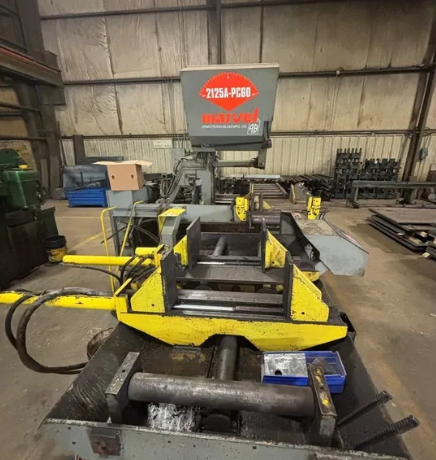

Marvel 2125A-PC60 vertical tilt frame saws Automatic

5' Outfeed Table
2 Shuttle Vises
Hydraulic Hold Down
All Available Manuals
Marvel PCII Controls Standard
3° Canted Column Standard
Tilt Hydraulic 0 - 60° Left and Right
Blade Drive Sensorless Vector Control
Blade Guides Self Clamping - Carbide/Roller
Blade Tension Hydraulic Adjustable - 45,000 PSI MAX
Vises Hydraulic Full Stroking
Variable Vise Pressure Optional
Interchangeable Vise Jaws 60° Faceplates Standard
45° & 90° Jaws/Faceplates Optional
Feed Force 0 - 350 lbs
Index Length 24"
Wheel Diameter 23"
Machine Table Cast Iron/2 T-slots
Upper Guide Arm Hydraulically Adjustable and Locking
Control Voltage 24 Volts DC
Column Travel Recirculating Linear Ball Ways
Work Light Standard
Coolant Capacity 60 Gal
Blade Cleaning Brush Standard - Friction Drive

Throat: 20"
Work Height: 25"
Power: 5 hp
Blade Width: 1.25"
Blade Length: 210"
Blade Speed: 50 to 475 FPM
Capacity: 20" x 25"
Capacity @ 45°: 20" x 17"
Capacity @ 60°: 20" x 11.25"
Dimensions: 133" x 109" x 99"
Weight: 7,000 lbs. approx.
