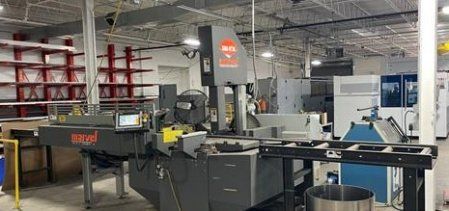

Marvel 380A-PC-60 Vertical Bandsaw SemiAutomatic

MARVEL 380A-PC-60
2017


Nominal capacity: 15" x 20"
Blade capacity at 60°: 15" x 8.75"
Round capacity: 15"
Blade length: 16 ft
Blade width: 1.25"
Blade thickness: 0.042"
Blade speeds: 60-400 FPM
Work height: 20"
Main motor: 5 HP
Hydraulic pump motor: 2 HP
Dimensions (LxWxH): 117" x 89" x 95"
Weight: 5,900 lbs

Marvel PC3 programmable control with 10" color touch screen
Automatic bar feed with 48" stroke
Electric blade drive with sensor-less vector control
Tilting column for miter cutting 60° left and right of vertical
Direct force sensing electric ball screw blade feed
Hydraulically controlled blade tension
Built-in flood coolant system
