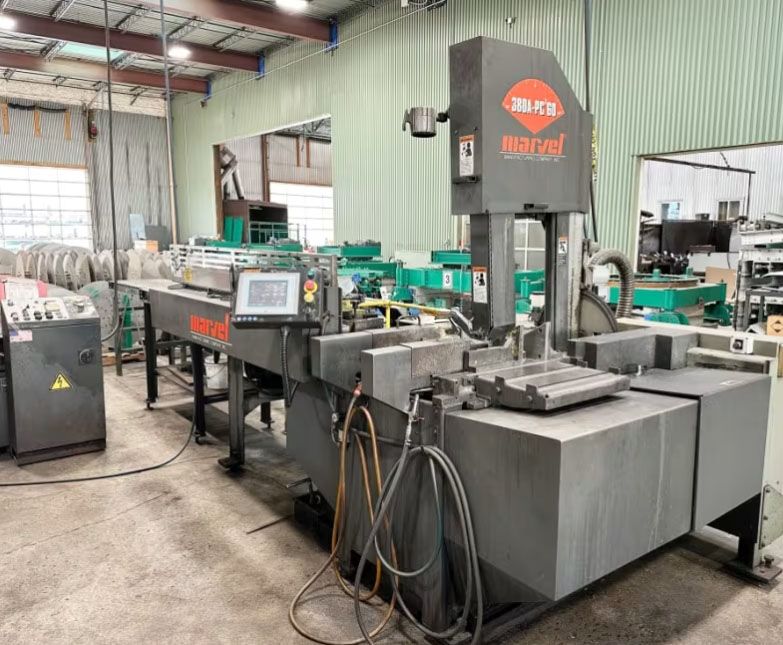

Marvel E380PC3 Band Saw SemiAutomatic

Capacity Nominal at 0°: 15" x 20" rectangular
Capacity Nominal at 0°: 15" round
Blade at 45°: 15" x 14" rectangular
Blade at 45°: 14" round
Blade at 60°: 15" x 9.25" rectangular
Blade at 60°: 9.25" round
Blade at -45°: 15" x 13.25" rectangular
Blade at -45°: 13.25" round
Blade at -60°: 15" x 8" rectangular
Blade at -60°: 8" round
Nominal at 3°: 14.5" x 20" rectangular
Nominal at 3°: 14.5" round
Blade at 45°: 14.5" x 13.5" rectangular
Blade at 45°: 13.5" round
Blade at 60°: 14.5" x 8.75" rectangular
Blade at 60°: 8.75" round
Blade at -45°: 14.5" x 12.75" rectangular
Blade at -45°: 12.75" round
Blade at -60°: 14.5" x 7.75" rectangular
Blade at -60°: 7.75" round
Power: 5 Horse Power
Blade Width: 1.25"
Blade Length: 16'
Blade Speed Variable: 60 – 400 FPM
Feed Force: 0 – 300 Lbs
Weight: 5,900 Lbs
Fully Automatic Vertical Tilt Frame Band Saw
Siemens Simatic Multi-Panel Touch PLC Control
Power Tilt with 60° Mitering Left and Right
0 – 3° Canted Column Adjustable Forward Approach Angle
Automatic Indexing with Second Standard Vise
Variable Vise Pressure
Lift Roller
24" x 120" Hytol Roller Conveyor
Roller Table 22" x 60"
