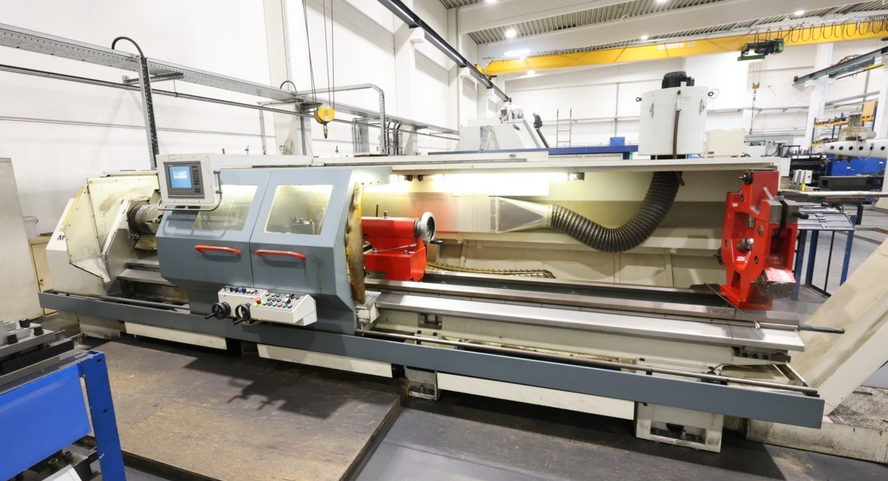

MAS Kovosvit Heidenhain Manual Plus 4110 1800 rpm MASTURN 70/4500 CNC 2 Axis
Ref :
2777692-3-GO
Condition :
Used
Manufacturer :
MAS Kovosvit
Controller :
Heidenhain Manual Plus 4110
Spindle Speed :
1800 rpm
Model :
MASTURN 70/4500 CNC
Nb Of Axis :
2 Axis
Year(s) :
2009
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
travel X axis 360 mm
travel Z axis 4500 mm
rapid traverse 10000 mm/min
control Heidenhain Manual Plus 4110
swing over bed 820 mm
maximum cutting diameter 530 mm
spindle bore 128 mm
spindle nose DIN 55027 B11
spindle speed range 0–1800 rpm
speed range stage 1 0–450 rpm
speed range stage 2 20–1800 rpm
max torque stage 1 3000 Nm
max torque stage 2 540 Nm
feed force X 10 kN
quill diameter 115 mm
distance between centers 4500 mm
total connected load 55 kVA
machine weight approx. 7000 kg
machine dimensions approx. 6500 x 1840 x 1860 mm
faceplate
jaw chucks
closed steady rest
clamping jaws
Multifix holder
turning tools
various tips
technical documentation
