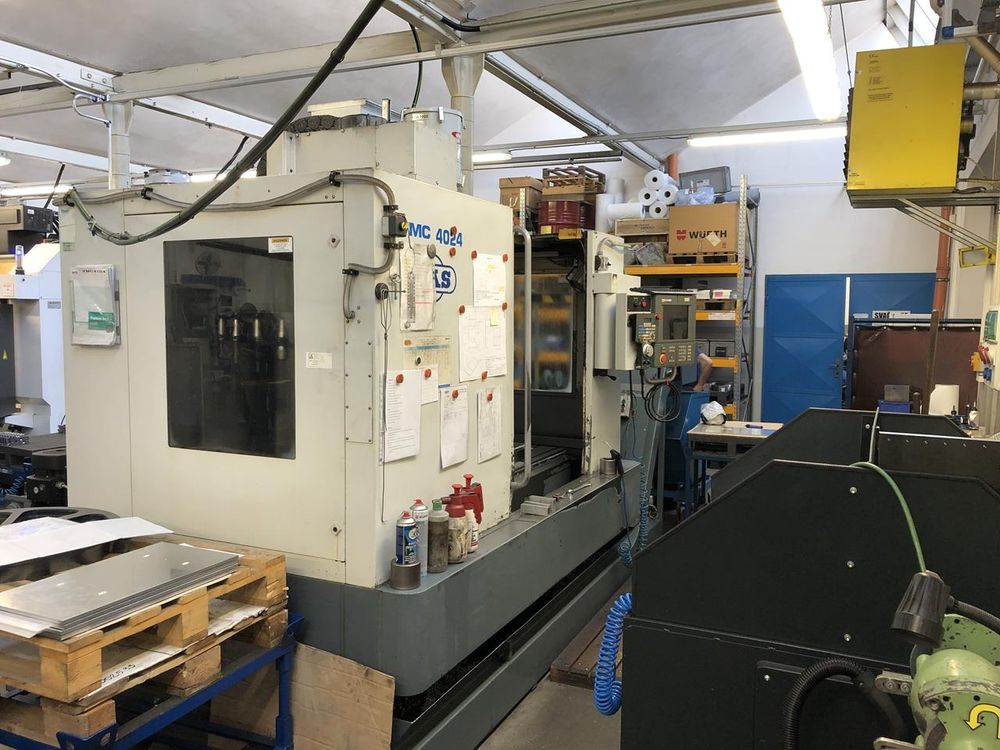

MAS VMC 4024 3 Axis

MAS VMC 4024
2002

Control system: Acramatic TPC-2100
Working table length: 1300 mm
Working table width: 600 mm
Maximum table load: 700 kg
Spindle drive power: 18.5 kW
Minimum spindle speed: 40 rpm
Maximum spindle speed: 10000 rpm
X-axis travel: 1016 mm
Y-axis travel: 610 mm
Z-axis travel: 660 mm
Maximum X-axis feed rate: 5000 mm/min
Maximum Y-axis feed rate: 5000 mm/min
Maximum Z-axis feed rate: 5000 mm/min
Taper: SK 40
Tool magazine capacity: 20 tools
Machine height: 2940 mm
Machine length: 3080 mm
Machine width: 2700 mm
Machine weight: 5500 kg
Chip conveyor
Oil mist separator
