Master PUR-1400

Panel laminating line
Professional PUR Hot Melt Laminating Line for Acrylic, PET, PVC, HPL and CPL Panels

General Description
The MASTER PUR-1400 is a professional, high-performance laminating line designed
for single-sided panel lamination using PUR Hot Melt adhesive.
The line is suitable for continuous industrial production and provides excellent surface quality with low adhesive consumption.
It is designed for manufacturing high-quality furniture panels, interior components, wall panels and decorative boards.

Suitable Substrates:
The machine is suitable for laminating:
MDF
Particleboard
Plywood
PVC boards
Gypsum boards
Other wood-based panels

Compatible Surface Materials
The line is designed for processing:
Acrylic sheets (High Gloss & Super Matt)
PET foil
PVC foil
HPL laminate
CPL laminate
Decorative paper

Technical Specifications :
Working width: 1,400 mm
Maximum panel size: 2,800 × 1,300 mm
Panel thickness: 2-40 mm
Production speed: 5-17 m/min
Output capacity: 3-5 panels/min
Maximum productivity: up to approx. 1,200 panels per 8-hour shift
Installed motor power: 21.49 kW
Heating power: 51.7 kW
Overall machine dimensions: approx. 16 × 2.5 × 2 m
Required installation area: minimum 6 × 22 m

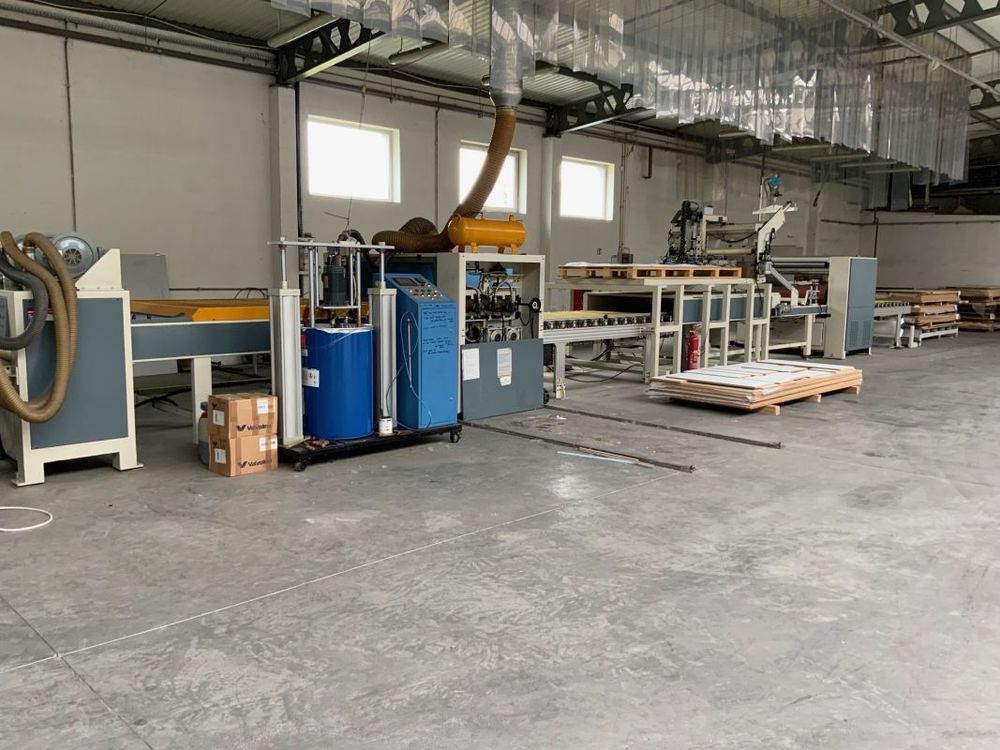

Line Configuration
The production line includes:
Automatic loading system with roller conveyor
Panel cleaning brush unit
Infrared (IR) preheating oven
3-roll PUR adhesive application system
Decorative material feeding station
Pressure roller laminating press
Discharge conveyor
208-litre PUR Hot Melt adhesive melting unit

Advantages :
Excellent laminating quality
Uniform PUR adhesive application
Suitable for high-gloss and super-matt acrylic surfaces
Low adhesive consumption
Stable and reliable operation in continuous industrial production
High production efficiency
Easy operation and maintenance
