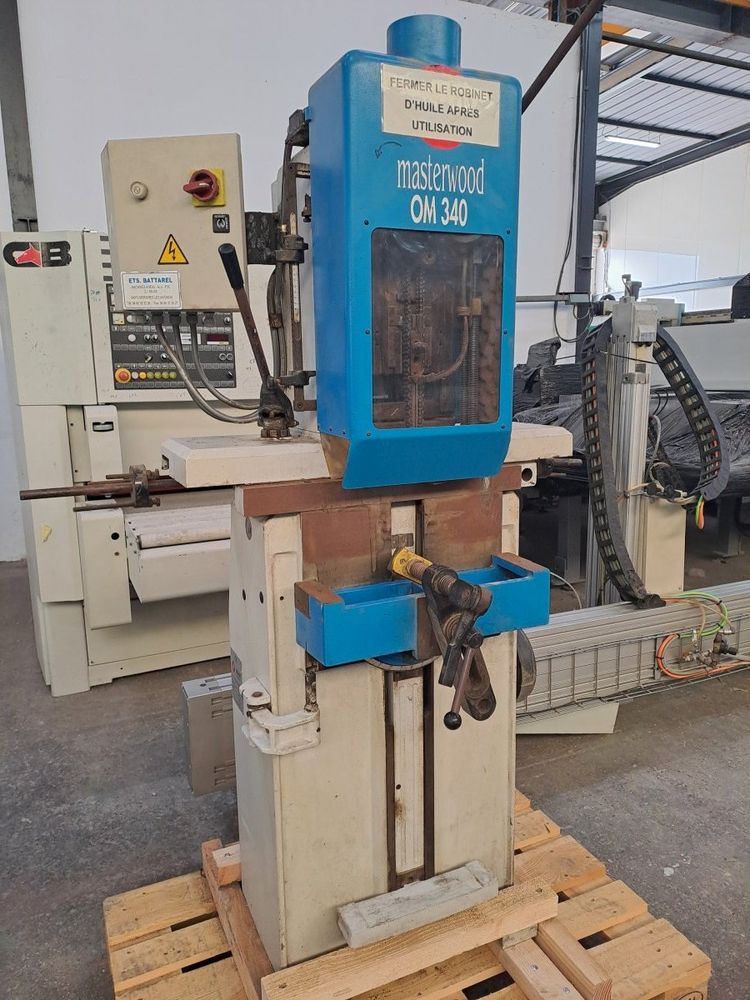

Masterwood OM340 Chain Mortiser

Condition: Used
Technical Specifications:
- Maximum Machining Height of Solid Workpiece: 180 mm
- Minimum/Maximum Machining Height of Assembled Frame: 700/980 mm
- Vertical Operating Unit
Chain: Standard
Manual Vertical Travel: 150 mm
Pneumatic Vertical Travel: 150 mm (optional)
Longitudinal Travel: 300 mm
Transverse Travel: 80 mm
Mortising Motor: 2.2 kW
Work Table
Dimensions: 140 x 470 mm
Extension Dimensions (2 x L = 1200 mm): Standard
Tilt: ± 45°
Manual workpiece clamping: standard
Pneumatic workpiece clamping: optional

Installation
Maximum installed electrical power: 2.23 kW
Pneumatic circuit operating pressure: 6 bar (optional)
Pneumatic circuit operating pressure: 120 mm
Top suction inlet: 25.30 m/sec
Pneumatic clamping: 6 bar
-Net weight: 340 kg
