Masterwood Project 385 L 5-axis

Machine Type: CNC Machining Center
Control Type: Conventional

Technical Details:
Working Travel: 4062 mm
Working Travel: 2922 mm
Working Travel: 660 mm
Machine with 934 Operating Hours
Numerically Controlled Drilling and Milling Machine with 5-Axis Full Control
- Machine from Bankruptcy

Working Areas and Travel Paths:
Axis Travel Paths:
X = 4062 mm
Y = 2922 mm
Z = 660 mm
Workpiece clearance - machinable workpiece:
Z =
A = 125 mm
H = 200 mm
C = 180 mm

Distance between stops:
X = 3,200 mm
Workpiece clearance - machinable workpiece:
Y = 1,500 mm
Usable milling cutter travel:
Y1 = 2,100 mm (vertical milling axis) relative to the rear stops
Axis speed:
X = 25 m/min (oscillating mode)
= 48 m/min (full-field mode)
Y = 38 m/min
Z = 25 m/min
Vector speed (XY) = 53 m/min

Drilling head with 19 spindles:
- 7 independent vertical drilling spindles on the X axis
- 6 independent vertical drilling spindles on the Y axis
- 2 horizontal twin drilling spindles on the X axis
- 1 horizontal twin drilling spindle on the Y axis
Distance between spindles: 32 mm
Speed: 4,000 rpm
Motor power: 1.7 kW
Saw unit integrated into the drilling head, for grooving and saw cuts in the X direction
Speed: 4,000 rpm
Max. saw blade diameter: 125 mm

5-axis milling head
Rotating milling motor for 5-axis machining.
The particularly rigid structure of the head allows the milling motor to be used in all directions
while utilizing the full motor power, even for machining operations that are usually performed using units.
The milling motor is equipped with circulating water cooling.
The tool holders are locked with disc springs, and released with

12 kW milling motor with liquid cooling
- HSK F63 holders
- Max. speed: 24,000 rpm
- C-axis rotation: +/- 360°
- A-axis rotation: +/- 108°
- Cooling unit
- Static frequency converter
Programming of the tool rotation speed via CNC control.
Automatic control of the tool braking effect.
Overload protection for current, voltage, and short circuits. Display for error messages.

22-station automatic carousel tool changer
- Position: Carriage side
- HSK-F63 tool holders
- Max. tool diameter 240 mm
- Max. circular saw blade diameter 350 mm
- Center distance of the tools in the changer 102 mm
- Total weight of the max. 22 tools 60 kg
- Max. weight per tool 6 kg
- Tool carousel rotation via brushless motor

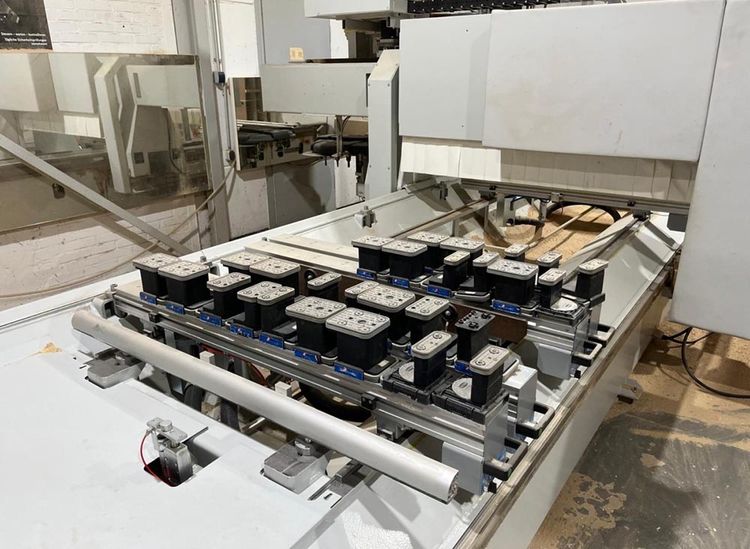

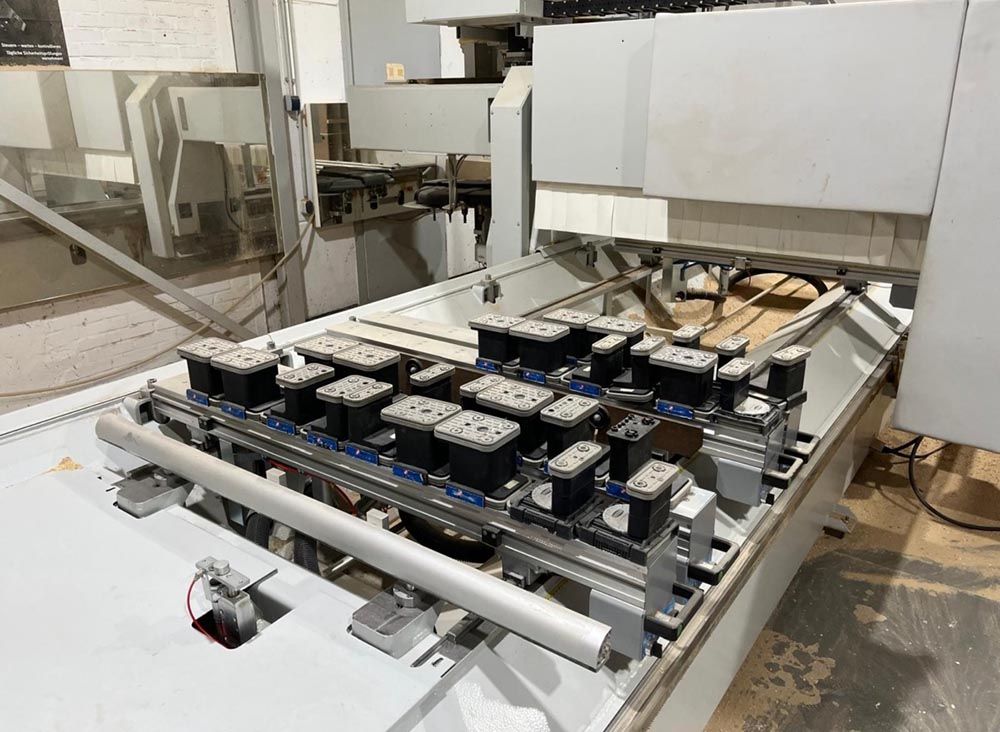

Workpiece supports:
The machine has 6 workpiece supports with CNC-controlled, retractable reference stops.
The stops are built internally into the support and guarantee absolute stability.
- 6 center stops
- 7 rear stops integrated into the frame
- 2 right side stops, manually adjustable in the Y direction on a profiled aluminum profile.
- 2 left-hand side stops, manually adjustable in the Y direction on a profiled aluminum profile.
The worktable is divided into two work areas.
This allows a panel to be placed on one work area while simultaneously machining on the other (pendulum machining).
Workpiece lifting device:
4 supports for lifting the workpiece from the worktable (2 per work area) facilitate the loading of heavy and large panels.
All reference stops are equipped with limit switches to ensure lowering.
This prevents collisions with the tools.

+ New computer
+ Current Masterwood software
+ DDX 5-axis software
+ Includes used tool
+ Includes commissioning by the manufacturer
+ Includes freight
Unloading, power connection, and extraction connection provided by the customer
