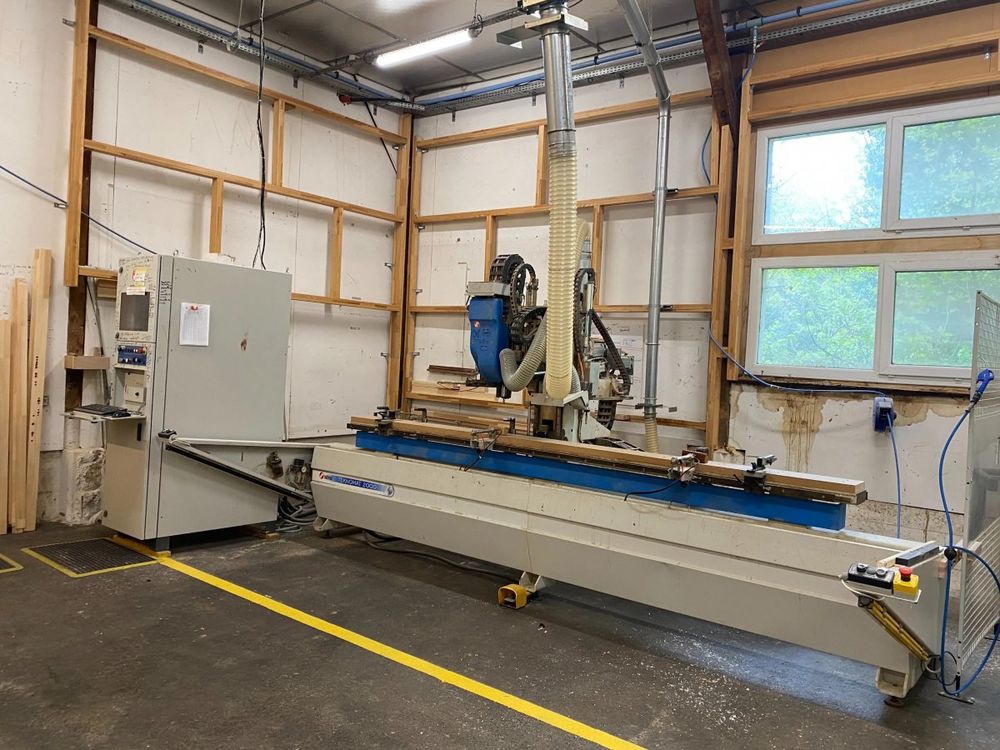

Masterwood Teknomat 2000TF

Router-plugging machine
Condition: Used
Availability: In stock

Technical specifications:
Machining capacity:
 X: 3000 mm
 Y: 150 mm
 Z: 350 mm

Group: 1-2 on digital tilting support -7° to, 90°
Group: 3 on pneumatic tilting support 0-90°
1st ANUBA filing unit, diameter 13 mm, digital tilting -7° to, 90°
2nd milling unit, high-frequency electro-spindle, 18,000 rpm, 3.3 kW, digital tilting -7° to, 90°
3rd milling unit, high-frequency electro-spindle 18,000 rpm, 3.3 kW, 0-90° pneumatic tilting

- Table size: 3000 mm usable width
- Control on separate cabinet
- Masterwood MW313 software
- Program provided: for ANUBA hinges (3 models)
- Program for mounting two ANUBA hinges close together
- Program for drilling a single hole
- Shutter program
- Program for milling the lock housing and for the hanger
- Speeds:
70 m/min in U axis
40 m/min in V axis
15 m/min in W axis
- Double 13 mm Anuba included
- Two front panel supports
- Mounted digital lowering and tilting
- Digital counter on the control panel
- Special features: safety barrier, infrared beam on the front
- Suction diameter: 2 x 100 mm
- Ampere: 25.5
- Machine dimensions: 5900 mm x 3300 mm, cabinet 1200 mm x 600 mm
