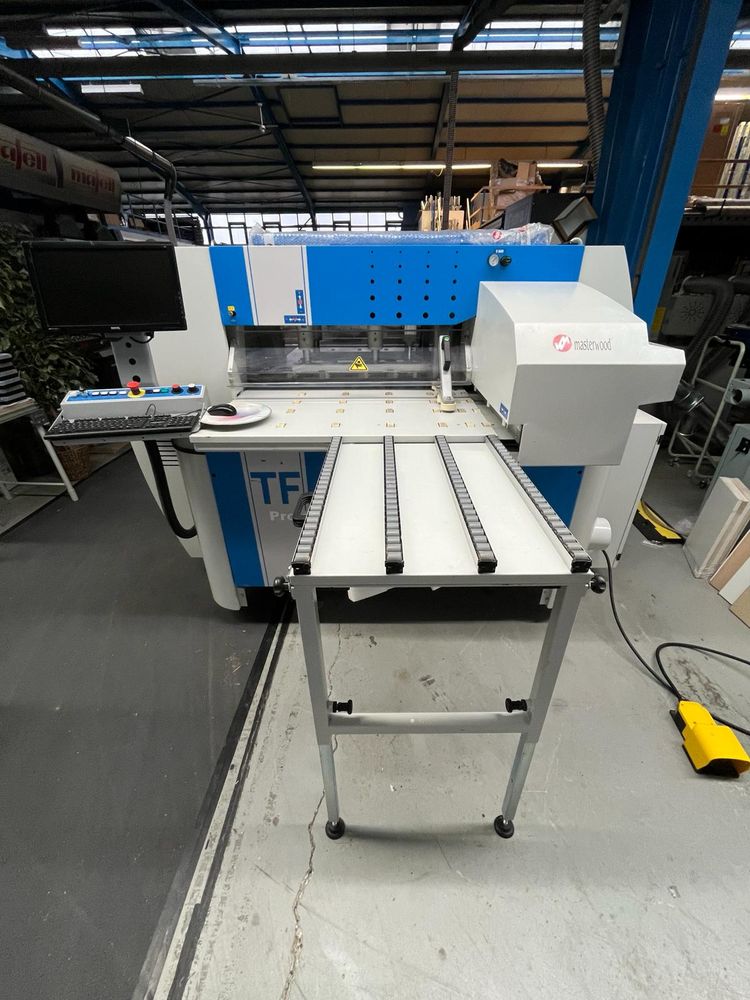

Masterwood TF 100

Used machine
Technical specifications:
Axes:
X-axis: Max. workpiece length: unlimited
Min. workpiece length: 250 mm
Traverse speed: 0-25 m/min.

Y-axis: Max. workpiece width: 1,000 mm
Min. workpiece width: 80 mm
Traverse speed: 0-50 m/min.

Z-axis: Max. workpiece thickness: 60 mm
Min. workpiece thickness: 10 mm
Traverse speed: 0-20 m/min.

The minimum and maximum workpiece sizes depend on the weight and the length-to-width ratio.
... Assemblies:
16 mm Drill Head: Vertical spindles in X-direction: 5 units
Vertical spindles in Y-direction: 5 units
Horizontal double drill spindles in X-direction:

2+2 units
Horizontal double drill spindles in Y-direction:

1+1 units
Drill spindle spacing: 32 mm
Drill spindle speed: 4,000 rpm
Motor: 1.7 kW
Grooving saw: in X-direction
Speed: 4,000 rpm
Max. saw blade diameter: 125 mm
Motor: 1.7 kW (The grooving saw is integrated into the drill head)
Milling unit for MASTERWOOD Project TF
Speed: 1,000 to 18,000 rpm
Motor (frequency-controlled): 3.3 kW
Collet chuck: max. 25 mm
Including integrated dust extraction control (When drilling, only the drill head is extracted; when milling, only the milling unit is extracted)
Program: MASTERWORK MACHINE VERSION
(Office version available upon request)

Further specifications:
Machine dimensions: 1,990 x 2,410 x 1,510 mm (L x W x H)
Weight: 1,300 kg
Required air pressure: 8 bar
Air consumption: max. 750 l/min
Extraction:
Volume: 2,000 m³/h
Air velocity: 25–30 m/sec
Extraction port: 1 x 150 mm

Additional features:
- Air tables at the work area
- Roller table at the infeed and outfeed
- Additional folding roller table at the infeed
- Sensor for panel measurement
- Ball screw and linear guides
- Rack and pinion drive
- Central lubrication
- Import of DXF files
Condition: Functionally tested
Availability: from approximately December 2025
