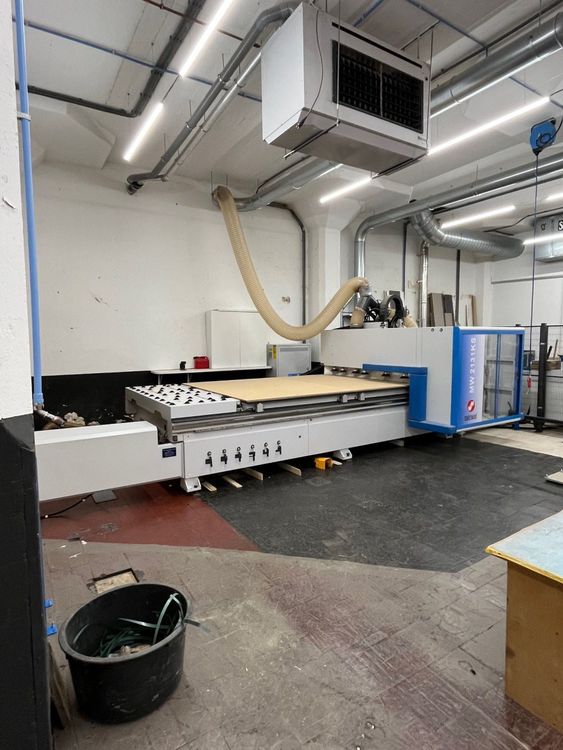

Masterwood Winner 21.31KS 3-AXIS

Ref : 2724751-15-MT
Condition : Used
Manufacturer : Masterwood
Model : Winner 21.31KS
Nb Of Axis : 3-AXIS
Year(s) : 2022
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)

Machining center
Condition: Used
Three-axis CNC machining center
With slotted worktable for nesting machining
Technical Specifications:
Matrix table
Pre-equipped for table with loading/unloading devices
Auxiliary panel unloading unit
Automatic tool length measuring device
Two 250 m³/h vacuum pumps
Remote control with 7" display
CE safety guards for stand-alone machine
400 V 50/60 Hz power supply
Delta control unit with Ethernet bus
Masterwork
Adhesive label printer

Part-to-machinable part passage:
- x = 3100 mm
- y = 2150 mm
- z = 85 mm (from the machine table)

Working Areas and Travels
Axis Travels:
- x = 3940 mm
- y = 2831 mm
- z = 265 mm

Axis Speeds:
- x = 80 m/min
- y = 80 m/min
- z = 20 m/min

Frame
Rigid, monolithic, welded and ribbed frame that ensures
Stability and precision over time.
Operating Unit Carriage

X-Axis Movement:
To ensure greater rigidity of movement on the "x" axis,
The gantry is moved using two rack and pinion systems,
Each of which is connected to a motor (gantry axis).

Z-axis movement:
The axis is moved by screw drives.
High-precision recirculating spheres with a preloading system.
Y-axis movement
The axis is moved by a pinion and a rack.
Rack with inclined and ground teeth.
Made of hardened steel.

Movement slides:
All movements are carried out on linear slides.
Dual-circuit guide lubrication system:
- X-axis: automatic and timed lubrication.
- Y and Z axes: manual lubrication.

Motorization
The axes are powered by brushless motors (without carbon brushes) with absolute encoders.

Slotted Table
The slotted table (60 mm pitch) is a multifunctional table.

Matrix Table
High-rigidity reference stops
Table designed for automatic loading/unloading

Panels
High-efficiency worktable with lower vacuum zones.
Automatic panel locking and unlocking.

Panel Gripping System:
Using special suction cups, this system allows the upper panel to be lifted
On the lifting platform.

Unloading Assistance Device:
Allows the finished parts to be pushed towards the unloading device.
Automatic tool length measuring device.
Kit of two 250 m3/h vacuum pumps
7" TFT handheld computer with mechanical keys and
Touch controls
Nesting optimization software
Drilling head
Operating unit for vertical drilling with independent chucks

10-chuck drilling head:
- 4 independent vertical chucks in X
- 6 independent vertical chucks in Y

Vertical electro-chuck
Mounted directly on the "Z" carriage
12-position rotating tool magazine for tool change
Automatic tool change
Operating system: Windows
Delta control unit with Ethernet bus - 3 interpolated axes
Masterwork machine version
Predefined macros
Import of .DXF files
Unloading conveyor
Unloading conveyor for panels measuring 3050 mm x 2100 mm
Height from the ground: approximately 900 mm with mechanical adjustment
Printer for adhesive labels
