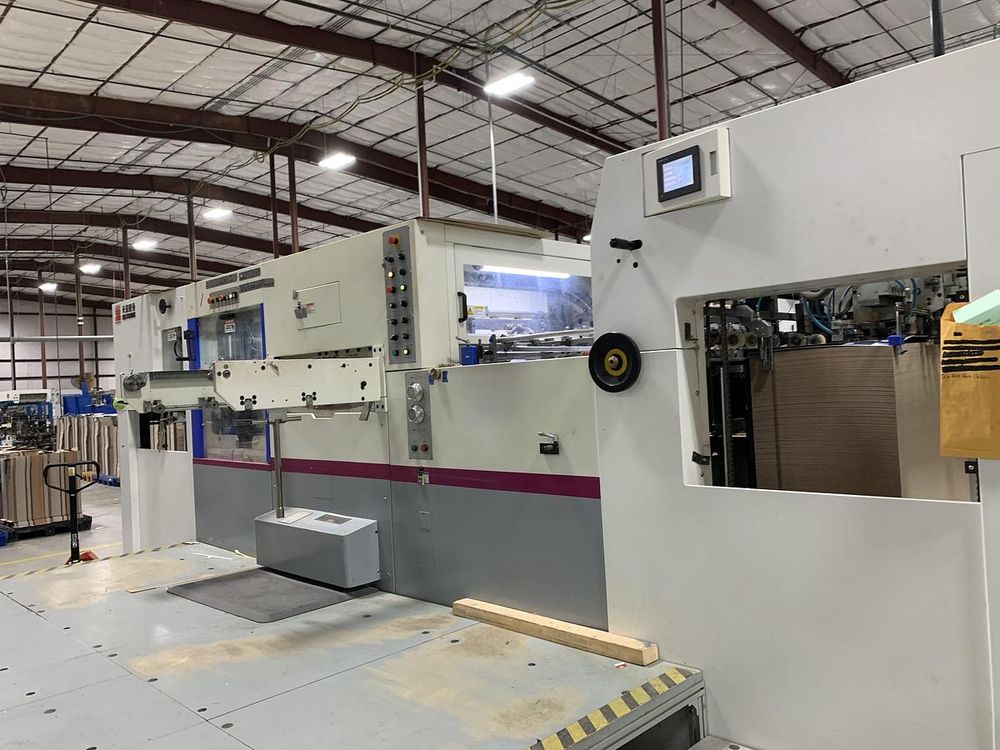

Masterwork (MK) MK1060

Used Automatic Die Cutter
Maximum sheet size: 1060 × 760 mm
Minimum sheet size: 450 × 360 mm
Optional minimum size: 350 × 300 mm
Maximum die-cutting size: 1045 × 745 mm
Inner chase size: 1120 × 786 mm
Gripper margin: 9–17 mm
Maximum production speed: up to 7,700 sheets/hour
Cutting accuracy: ≤ ±0.075 mm
Maximum cutting pressure: 3.2 MN

Substrate range:
0.1–2.0 mm paperboard
Up to 4.0 mm corrugated board
Maximum feeder pile height: 1150 mm
Maximum delivery pile height: 1000 mm
Non-stop feeder with automatic pile changeover
Double-sheet detection system (mechanical & electrical)
PLC control system with Mitsubishi interface & HMI
Complete stripping section with upper, middle & lower stripping frames
Pneumatic quick-lock die chase system
Air clutch braking system with imported drive components
Automatic lubrication system with integrated oil cooling
