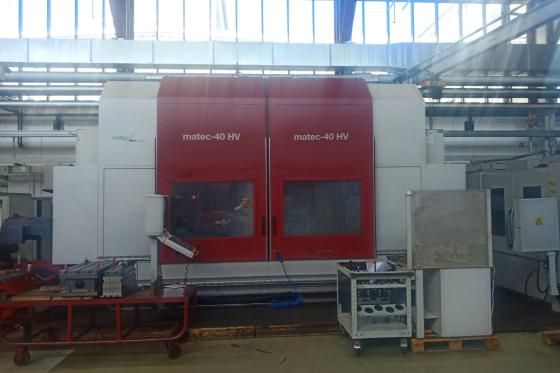

Matec 40 HV 4 Axis

X - Travel: 3000 mm
Y - Travel: 825 mm
Z - Travel: 1100 mm
B - Axis: -3° to +105°

Control: HeidenHain iTNC530
Coolant through spindle / Bar: 25
Number of controlled axis: 4
Spindle Speed: 8000 Rpm
Power on spindle: 37 kW
Spindle Taper: 50 ISO/Bt/Mk
Feed rate X-Axis: 48000 mm/min
Feed rate Y-Axis: 80000 mm/min
Feed rate Z-Axis: 48000 mm/min
ATC / revolver: 40
Table Length: 3500 mm
Table Width: 835 mm
Table load: 3500 kg
Length: 6500 mm
Width: 3600 mm
Height: 3940 mm
Weight: 19000 kg

1 Axis CNC Swivel head, infinitely variable
Axis drive with ball screw drive
Roller linear guides in all axes
Direct path measuring systems
Full work area enclosure with roof
Chip conveyor
Coolant unit
