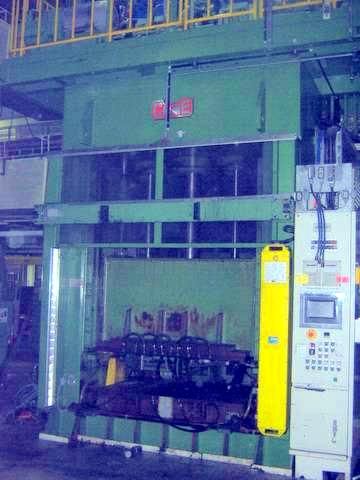

Matsushita THB 120 x 100 125 t

Hydraulic drawing press make CAME Panasonic
Matsushita type THB 120 x 100
Model no 1882
year of construction 1996

Max. Press force: 125 t
Retraction force: 20 t
Compressive force of the die cushion: 70 t
Retraction force of the die cushion: 37 t
Oil pressure of the press: 210 bar
Oil pressure of the die cushion: 140 bar
Table size: 1300 x 1000 mm
Passage: 1600 x 1200 mm
Installation height: 1300 mm
Ram stroke: 900 mm
Oil filling: 1300 l
Rapid traverse from max.: 300 mm / s
Cylinder diameter: 224 mm + 2 x 112/80
Cylinder Tissue Diameter: 310/180/310/250 mm
Weight of the upper tool max.:2300 kg
Drive power: 45 kW
Drive Power Cushion: 22 kW
Dimensions L x W x H approx .: 4,000 x 3350 x 5400 mm
Weight approx. 31 t
With
- heated intermediate plate
- Holding device
- Photocell manufacturer SICK
- Two-hand operation
- UVV regulations according to 89/392 EEC
- CE clamp
previous use:
Deep drawing of slit masks for the picture tube production
very little used
