Matsuura H-Plus 405 PC2 4 Axis

X-axis travel: 25.98″
Y-axis travel: 25.98″
Z-axis travel: 25.98″
B-axis: Full 4th axis

Control: Matsuura G-Tech 301 (Fanuc) CNC
Coolant through spindle
High pressure coolant
Synchronised tapping
Scale feedback X,Y,Z (Heidenhain)
Air blow
MMU sight speed/high precision option
Nano smoothing
Look ahead block expansion
Renishaw probe
Renishaw broken tool detection
AD-TAP function
IPC function
Spindle oil cooler

Auto grease supply unit for X,Y,Z
Swarf rear disposal
Chip flow system
Spindle overload protection
9 sorts of M-code counter
THERMAL MEISTER™
Work light
Levelling plate and bolts
Handy Man II
Coolant shower system
Machine manuals
Pallet size: 19.68″ × 19.68″
Pallet capacity: 880 lbs

X-axis rapid feedrate: 2,362.2
Y-axis rapid feedrate: 2,362.2
Z-axis rapid feedrate: 2,362.2

Spindle speed: 12,000 RPM
Spindle torque: 187.3 / 1,120
Spindle taper: BT40

Main motor: 30 HP
Spindle motor HP (intermittent): 22 HP
Tool changer capacity: 240
Tool-to-tool time: 2.7 s

Maximum tool diameter: 3.14″
Maximum tool weight: 22 lbs
Machine dimensions: 93.97″ W × 162.99″ L × 98.34″ H
Machine weight: 22,900 lbs

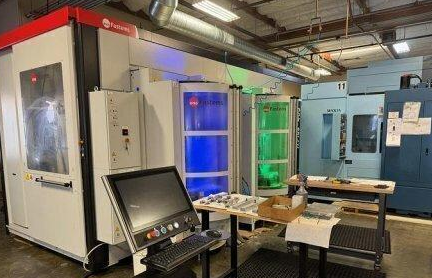

Fastems FPC750 Advanced SW – 12 pallet system
Matsuura-made 4th axis
LNS MH 250 chip conveyor
Total splash guard
