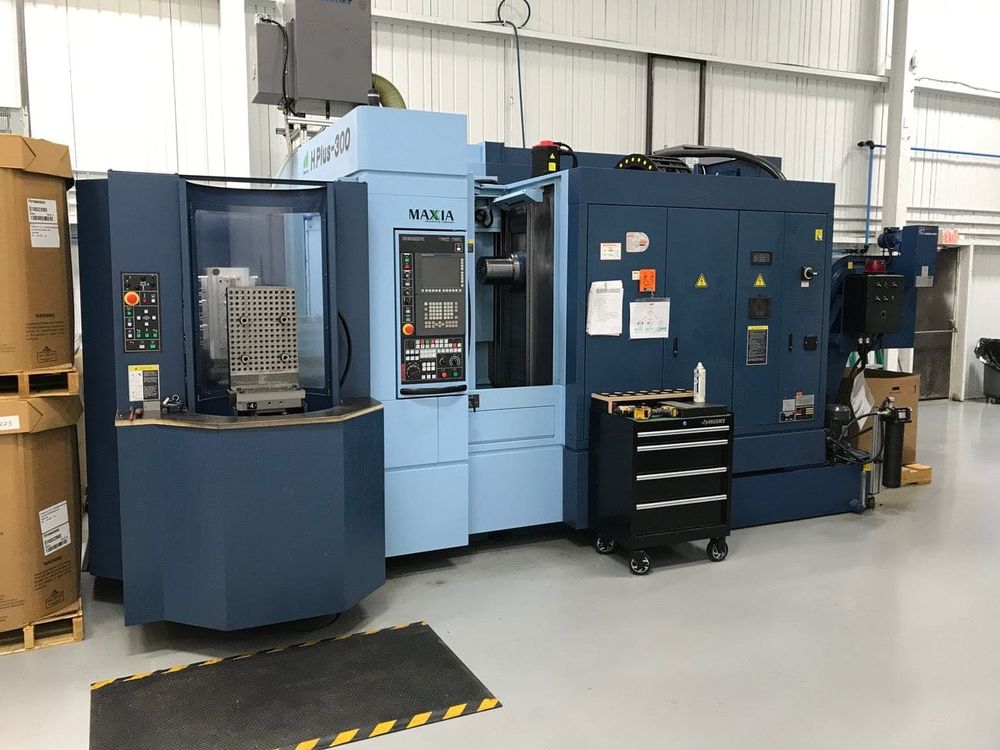

Matsuura HPlus-300 4 Axis

Matsuura HPlus-300
2018

Pallet size: 11.81" x 11.81"
Number of pallets: 5
Table load capacity: 550 lbs
X-axis travel: 19.68"
Y-axis travel: 19.68"
Z-axis travel: 19.68"
Pallet center to spindle face: 3.15" – 22.83"
Pallet surface to spindle center: 4.72" – 24.41"
B-axis indexing: 0.0001° contouring
Spindle speed: 15,000 RPM
Spindle taper: CAT 40
Rapid traverse rate X,Y,Z: 1969 ipm
Cutting feed rate: 1969 ipm
Automatic tool changer capacity: 120 tools
Machine weight: 22,000 lbs

15,000 RPM CAT 40 spindle
Full fourth axis rotary table with scale (0.001° indexing)
5 position automatic pallet changer
Rotary wiper/air supply system
Turbo Micro-Fine II chip conveyor with 640 liter coolant tank
Lift-up and scrapper type conveyor
Drum/disk filtering unit with backwash system
In-process measurement, Renishaw OMP-60
Renishaw NC-4 laser for tool measurement
Coolant through spindle, 300 PSI (option)
Overhead flushing system
Upgraded chip evacuation system
Aeroex ROX-400 oil/mist collector (option)
Fanuc control options: G54.2 dynamic fixture offset
Fanuc iZ-2/150NF with 1000 block lookahead
Nano smoothing function with jerk control
Optimal torque accel/decel function (option)
Orbital turning function (option)
