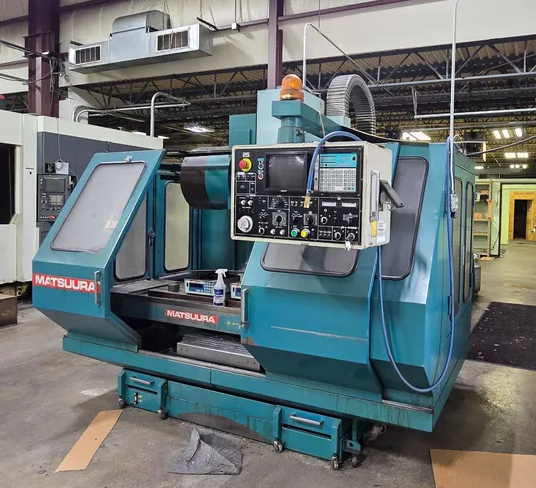

Matsuura MC-760VX 3 Axis

MATSUURA MC-760VX
Year: 1990

X 30"
Y 16"
Z 19"

Power 15 hp
RPM 6,000 RPM
# ATC 30
Taper 40
Table-W 16.142"
Table-L 45.276"
Control CNC (Yasnac)
Dimensions 116"x112"x109"
Weight 12,000lbs

TABLE SIZE: 45.28" X 16.14"
MACHINE TRAVELS (X/Y/Z): 29.92' X 17.32" X 19.09"
TABLE CAPACITY: 1,102 LBS.
SPINDLE TAPER: BT 40
SPINDLE SPEEDS: 6,000 MAX RPM
RAPID TRAVERSE RATE (X/Y/Z): 590 / 590 / 472 IPM
MAXIMUM CUTTING FEED RATE: 197 IPM
TOOL CHANGER STYLE: TWIN-ARM
TOOL CHANGER CAPACITY: 30 STATIONS
TOOL CHANGE TIME: 1.9 SECONDS TOOL TO TOOL
MAX TOOL LENGTH: 13.7"
MAX TOOL WEIGHT: 22 LBS.
SPINDLE DRIVE: 10 HP
SPINDLE TO TABLE DISTANCE: 5.91" - 27.17"
SPINDLE CENTER TO COLUMN DISTANCE: 18.5
