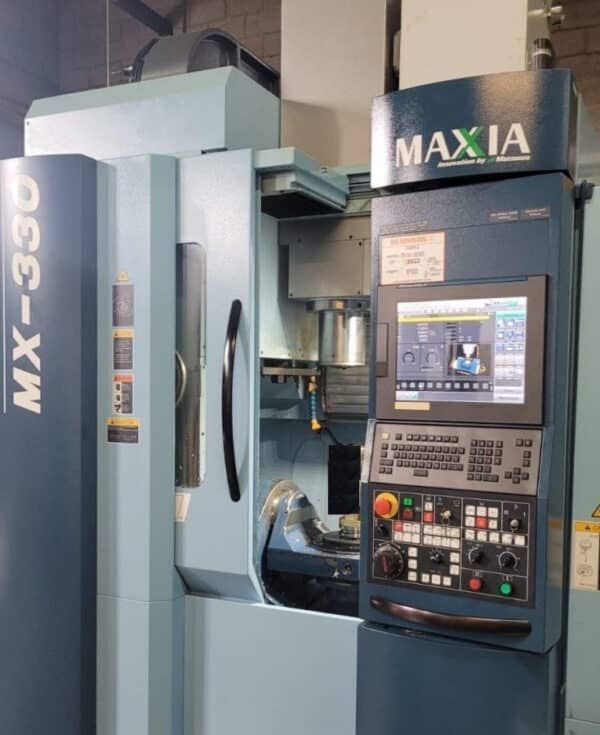

Matsuura MX-330 PC10 5 Axis

X-axis travel: 435 mm (17.13")
Y-axis travel: 465 mm (18.31")
Z-axis travel: 560 mm (22.05")
A-axis travel: -125° ~ +10°
C-axis travel: 360°

Rapid traverse (X/Y/Z): 40 m/min (1,574.80 ipm)
Rapid traverse (A/C): 17 / 33 m/min
Control: Matsuura G-Tech 31i
Spindle speed: 20,000 RPM
Tool taper: BT40
Tool magazine capacity: 90 ATC
Maximum work size: Ф330 × H320 mm (Ф12.99 x H12.60)
Working surface: Ф250 mm (Ф9.84) – Standard
Loading capacity: 80 kg (176.37 lb)

Equipped with:
20,000 RPM air/oil spindle
Tool probe
Part probe
10 pallet changer
Mist collector
Chip auger
Thru spindle coolant 300 psi
Air dryer
