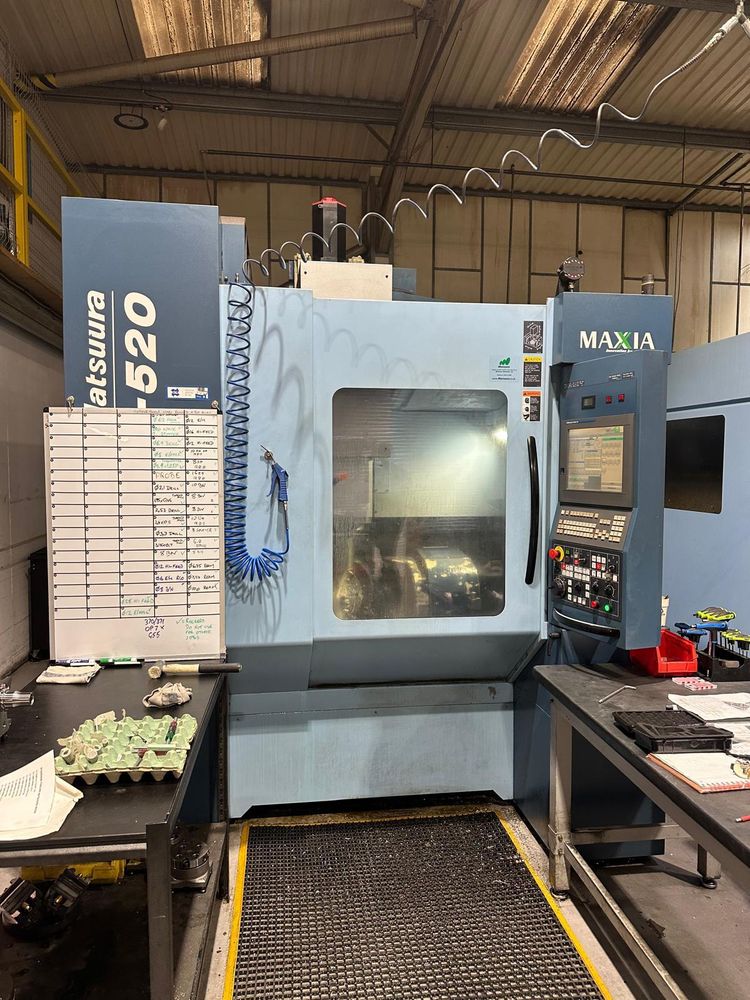

Matsuura MX-520 4 Axis

Traverses XYZ: 630 x 560 x 510 mm
Rapid Feedrates: 40 m/min
A Axis Travel: -125/+10 degrees
C Axis Travel: 360° (0.001 degree increment)
Matsuura FANUC G-Tech 31i Control
Coolant
Interlocked Guards
Low Volt Light
Swarf Conveyor
Through Spindle Coolant
Maximum Cutting Feedrate: 40,000 mm/min
Table Size: 300 mm
Maximum Tool Diameter: 80 mm
Maximum Tool Diameter with Empty Adjacent Pockets: 150 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 10 kg
Maximum Workpiece Height: 350 mm
Maximum Workpiece Size: 520 mm
Maximum Workpiece Weight: 200 kg
Spindle Motor Power: 7.5/11 kW
Spindle Speed: 12,000 RPM
Tool Change Capacity: 60 Station
Tool Size: BT40
Machine Dimensions: 2860 x 3771 x 2879 mm
Machine Weight: 8,850 kg
