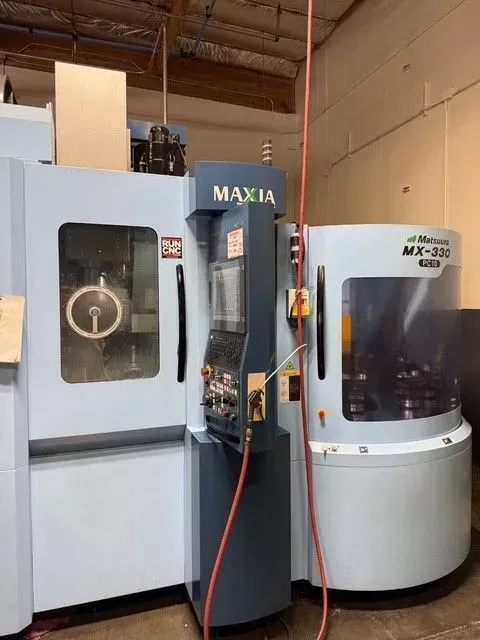

Matsuura MX330 PC10 4 Axis

MATSUURA MX330 PC10
2021

X travel 24.8"
Y travel 22.04"
Z travel 20.07"
Spindle speed 20,000 RPM
Tool capacity (ATC) 90
Table size (W) 19.7"
Table size (L) 19.7"
Main spindle motor 3 HP
Spindle taper CAT 40
A-axis tilt range -125° to +10°
Coolant through high pressure
Coolant pressure 1000 PSI
Part probe
Tool probe with automatic tool length measurement
Multiple pallets
Rapid traverse X axis 1574 IPM
Rapid traverse Y axis 1574 IPM
Rapid traverse Z axis 1574 IPM
CNC control MATSUURA G-TECH 31iB
Touchscreen display control
Oil/air lubrication spindle
Vacuum-type coolant through preparation
Heidenhain scale feedback on X, Y, Z
Air blow for chip removal
Thermal displacement compensation
Spiral augers
PC10 pallet changer
8 extra M functions
Spindle load monitoring system
3-color tower light
Rotary wiper system
Tool pre-check function
3-dimensional cutter compensation
Weekly timer

Renishaw NC-4 laser tool probe
Renishaw OMP 400 spindle probe
ATS fixed flow 1000 PSI coolant through spindle
Mosnic scraper-type drum filter chip conveyor
Cut hours 5500
