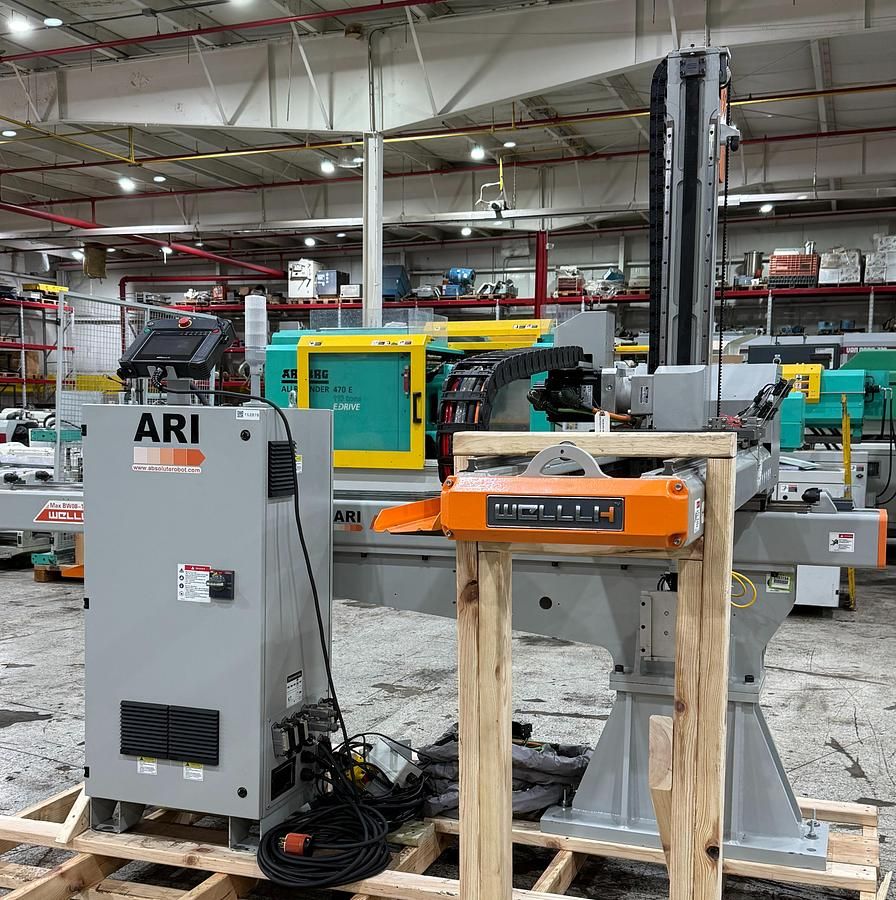

MAXBW10S-P Servo Robot

Manufacturer WELLLIH ARI
Model: MAXBW10S-P MAXBW08-1300P
Movement: Vertical Arm, Servo Telescoping
IMM Range: 500 - 800 US Tons
Max Payload: 22.05 lbs
Vertical Stroke: 59.06"
Single Arm Strip: 55.12"
Traverse: 98.43"
Gripper Angle: 90°
Drive System: AC Servo Motor
Working Air Pressure: 71.12 - 113.83 PSI
Air Consumption: 40.58 Fluid Oz
460 Volt
3 Phase
60 Hz
Max Amps: 12.1
Riser/Adapter Plate
4 Vacuum Circuits
2 Gripper Circuits
20 Spare Input/Output Signals
Pneumatic "Flip" C-Axis
Unit was Installed and Programmed - Never Ran Production
